REF742/REEFER/1988/5281.24CBM/BUYERS OFFER

REF742/REEFER/1988/5281.24CBM/BUYERS OFFER
1.00
Title
REF742/REEFER/1988/5281.24CBM/BUYERS OFFER
Ref No
RF503199
Built
1988
DWT
4,218.03
Flag
PANAMA
Model
REEFER
Additional information
Description

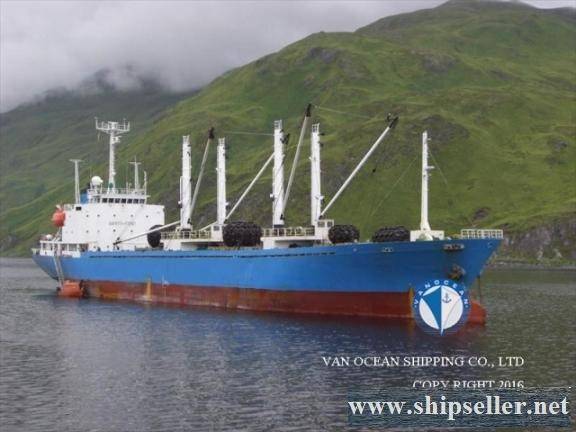

VESSEL NAME REF742
TYPE REEFER CARRIER
DEEP FREEZING OR NOT YES
FLAG PANAMA
PORT OF REGISTRY PANAMA
BUILT built_in 1988
BUILT PLACE TERAOKA SHIPYARD CO., LTD. , JAPAN
CLASSIFICATION NK
CLASS NOTATION NS*, MNS*, RMC*
SS 2018-10-22
DD 2016-10-06
LOA (M) 100.80
LBP (M)
BEAM (M) 15.60
DEPTH (M) 9.50
SUMMER DRAFT (M) 6.20
WINTER DRAFT (M)
TROPICAL DRAFT (M)
GT (MT) 3475.00
PANAMA GT (MT)
SUEZ GT (MT)
NT (MT) 1720.00
PANAMA NT (MT)
SUEZ NT (MT)
SUMMER DWT (MT) 4218.03
WINTER DWT (MT)
TROPICAL DWT (MT)
LDT (MT)
DISPLACEMENT (MT)
GEAR(S) DERRICKS, UP 4 MT, WINCH 4 MT x 30/60 M/MIN, OUT REACH 4.5 M
M/E(S) "1 x AKASAKA 7UEC37LA, 2-CYCLE DIESEL ENGINE, 4900PS x 210RPM
TURBO-CHARGER MITSUBISHI MET-42SC"
M/E POWER (KW) 3603
A/E(S) "3 x DOOSAN AD222TIS, 720PS x 1800RPM, 625KVA
BOILER&EXH GAS ECONOMIZER: MIURA VWK-1620"
GENERATOR(S)
SHAFT GENERATOR(S)
PROPELLER(S)
COOLING SYSTEM (COMPRESSOR) "MYCOM SCREW TYPE REF. COMPRESSOR, 3550RPM
2 x F160LUD2-M 88.3R/T, 120KW x 2P x 138.3BKW
2 x F162C2-61A 20.OR/T, 150KW x 2P x 70.4BKW"
SPEED/CONSUMPTIONS "BALLAST: 13.5 KONTS; FULL LOAD: 12.5 - 13.0 KONTS
AT SEA IFO: 13.50 MT/DAY(M/E); MGO: 2.50 MT/DAY(G/E)
IN PORT IFO: 0.7 MT/DAY(BLR); MGO: 2.50 MT/DAY(G/E)"
FUEL TYPE
BUNKER CAPACITY (CBM) 827.17
TANKS CAPACITY (CBM) 101.61(FW); 37.22(WB/FPT)
NUMBER OF CARGO HOLDS 3
HATCH NUMBER 3
HATCH TYPE
HATCH SIZE (M)
HEIGHT OF HATCH COAMING (M)
COMPARTMENT(S)
DECK(S) 3
DECK HEIGHT (M)
CARGO CAPACITY (CBFT) 191422.70
CARGO CAPACITY (CBM) 5281.24
FLOOR SPACE CAPACITY (SQM)
GRATING/DECK STRENGTH
TEMPERATURE ZONE(S)
TEMPERATURE (℃) -30/+32(1&3 HOLD); -50/+32(2 HOLD)
TYPE OF VENT SYSTEM
VENT (TIMES/HOUR)
AIR CHANGE (TIMES/HOUR)
PALLET(S)
CONTAINER CAPACITY
REEFER PLUG(S)
SIDE DOOR(S)
FENDER(S)
ANCHOR CHAIN(S)
USDA CERTIFICATE
INSURANCE
CREW 25
ACCOMMODATION
INSPECTION ETA BUSAN 15-20TH MARCH
DELIVERY
PRICE BUYERS OFFER
REMARK(S) "FW GENERATOR: NAIDER MIURA CO., LTD. MODEL WM-5M, 5 MT/DAY
S.S.B.: JRC JSB-77, 1.6-14MHZ, 24 CHANNEL
RADAR: JRC NO.1 JMA 627-6, NO.2 JMA 527-6"
