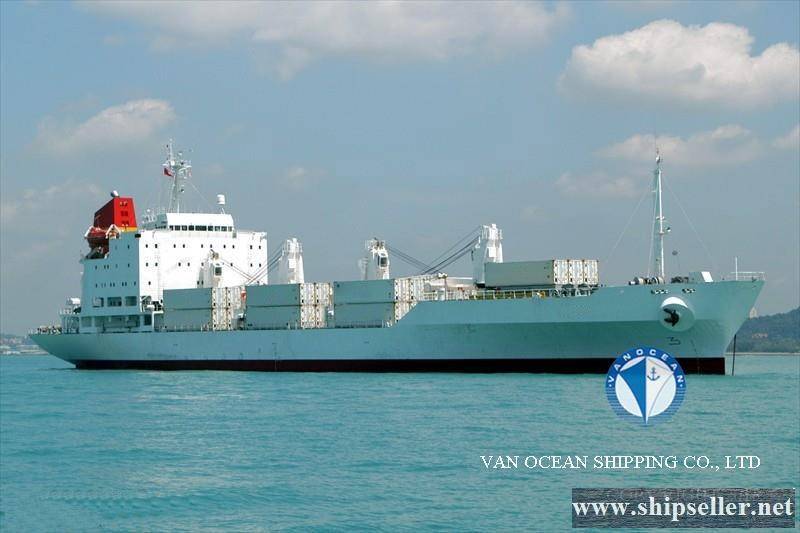

REF662 / 1988 BLT / 15395CBM / USD 2.6M

VESSEL NAME
REF662


TYPE
REEFER CARRIER


DEEP FREEZING
OR NOT
NO


FLAG
ST.VINCENT AND THE
GRENADINES


PORT OF
REGISTRY
KINGSTOWN


BUILT built_in
1988


BUILT PLACE
HAYASHIKANE, JAPAN


CLASSIFICATION
RMRS


CLASS NOTATION
KM* REF* ICE 2


LOA (M)
145.50


LBP (M)
136.87


BEAM (M)
22.60


DEPTH (M)
13.00


SUMMER DRAFT
(M)
9.20


GT (MT)
10298.00


PANAMA GT (MT)
11318.14


SUEZ GT (MT)
11155.00


NT (MT)
4653.00


PANAMA NT (MT)
8705.28


SUEZ NT (MT)
8066.30


SUMMER DWT
(MT)
11055.00


LDT (MT)
5973.00


DISPLACEMENT
(MT)
17029.00


GEAR(S)
ELECTRIC CRANES: 2 x
30MT; 2 x 10MT


M/E(S)
B&W
6L60MCE, 10670BHP, 111RPM

TURBO CHARGER: MITSUI-MAN NA57/N7


M/E POWER (KW)
7850


A/E(S)
4
x DAIHATSU DIESEL 6DL-24, 1100BHP/809KW, 720RPM

1 x EMERGENCY ENGINE: MITSUI-DEUTZ BF6L 913C, 80KW 1800RPM


GENERATOR(S)
4
x FUJI A.C. 450V 60HZ 750KW 720RPM

1 x EMERGENCY GENERATOR: FUJI A.C.450V 60HZ 80KW 1800RPM


SPEED/CONSUMPTIONS
19KTS; 20KTS AT
32MT/DAY


FUEL TYPE
IFO


NUMBER OF
CARGO HOLDS
4


HATCH NUMBER
4


HATCH SIZE (M)
9.0 x 7.0


COMPARTMENT(S)
16


DECK HEIGHT
(M)
2.2


CARGO CAPACITY
(CBFT)
543430


CARGO CAPACITY
(CBM)
15395


FLOOR SPACE
CAPACITY (SQM)
5743


GRATING/DECK
STRENGTH
SUITABLE
FOR PNEUMATIC FORKLIFTS WITH ALL-UP WEIGHT OF 6.5MT


TEMPERATURE
ZONE(S)
8, 1AB/CD, 2AB/CD,
3AB/CD, 4AB/CD


TEMPERATURE (℃)
-25/+15


VENT
(TIMES/HOUR)
90


AIR CHANGE
(TIMES/HOUR)
4


PALLET(S)
4300


CONTAINER
CAPACITY
33 FEU


REEFER PLUG(S)
66


INSURANCE
P&I
– INGOSSTRAKH, MOSCOW

H&M - ROSGOSSTRAKH, MOSCOW, AS LEADER


DELIVERY
APRIL, PERU


PRICE
USD 2.6 MILLION
