REF613/1993/11400CBM/5.5MILLION

REF613/1993/11400CBM/5.5MILLION
5,500,000.00
Title
REF613/1993/11400CBM/5.5MILLION
Ref No
RF922988
Built
1993
DWT
8,005
Flag
LIBERIA
Model
REEFER
Additional information
Description

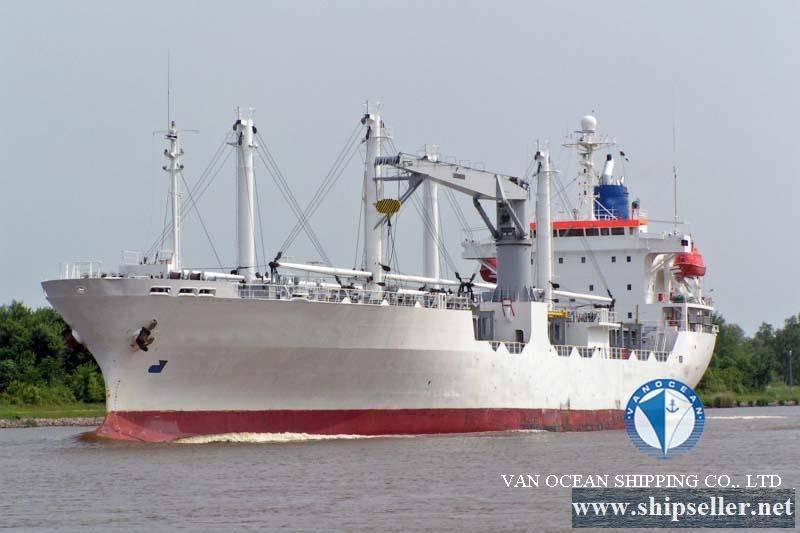

VESSEL NAME REF613
TYPE REEFER CARRIER
DEEP FREEZING OR NOT NO
FLAG LIBERIA
PORT OF REGISTRY MONROVIA
BUILT built_in 1993
BUILT PLACE KANASASHI K.K. , JAPAN
CLASSIFICATION BV
CLASS NOTATION I, +HULL, +MACH, +REF-CARGO, UNRESTRICTED NAVIGATION
SS
DD
LOA (M) 134.02
LBP (M)
BEAM (M)
DEPTH (M) 10.17
SUMMER DRAFT (M) 7.57
WINTER DRAFT (M) 7.42
TROPICAL DRAFT (M) 7.73
GT (MT) 7329.00
PANAMA GT (MT)
SUEZ GT (MT)
NT (MT) 4812.00
PANAMA NT (MT) 6597.59
SUEZ NT (MT) 6572.95
SUMMER DWT (MT) 8005.00
WINTER DWT (MT) 7685.00
TROPICAL DWT (MT) 8328.00
LDT (MT)
DISPLACEMENT (MT)
GEAR(S) "CRANE, 1 x 40MT;
DERRICKS, 8 x 5MT OR UP 4 x 5MT"
M/E(S) MITSUBISHI 2 S.A. 8 CYL. 9600HP
M/E POWER (KW) 7164
A/E(S) YANMAR M200L-EN 750HP
GENERATOR(S) TAYO
SHAFT GENERATOR(S)
PROPELLER(S)
COOLING SYSTEM (COMPRESSOR)
SPEED/CONSUMPTIONS "BANANA LADEN: 18.7 KTS;
ME CONSUMPTION: 28 MT IFO 380;
AE CONSUMPTION: 4 MT IFO380+1.5 MT IFO380"
FUEL TYPE IFO380
BUNKER CAPACITY (CBM) 1114
TANKS CAPACITY (CBM) MDO: 138
NUMBER OF CARGO HOLDS 4
HATCH NUMBER 4
HATCH TYPE
HATCH SIZE (M) 7.40 x 7.30
HEIGHT OF HATCH COAMING (M)
COMPARTMENT(S) 15
DECK(S) 4
DECK HEIGHT (M) ≥ 2.20
CARGO CAPACITY (CBFT) 402574
CARGO CAPACITY (CBM) 11400
FLOOR SPACE CAPACITY (SQM) 4546
GRATING/DECK STRENGTH MAX 5.0 MT CARGO AND FORKLIFT WITH MIN 4 PNUEMATIC TIRES
TEMPERATURE ZONE(S) "8
1A/BC, 2AB/CD, 3AB/CD, 4AB/CD"
TEMPERATURE (℃) -30 /+15
TYPE OF VENT SYSTEM VERTICAL
VENT (TIMES/HOUR) 90
AIR CHANGE (TIMES/HOUR) 4
PALLET(S) 3450
CONTAINER CAPACITY 52 FEU OR 68 TEU+14 FEU
REEFER PLUG(S) 50
SIDE DOOR(S)
FENDER(S)
ANCHOR CHAIN(S)
USDA CERTIFICATE VALID UNTIL 2016-02-01
INSURANCE
CREW
ACCOMMODATION
INSPECTION 2016-11-14 TO 11-20 DAVAO, PHILIPPINE
DELIVERY
PRICE USD 5.5 MILLION
REMARK(S)
