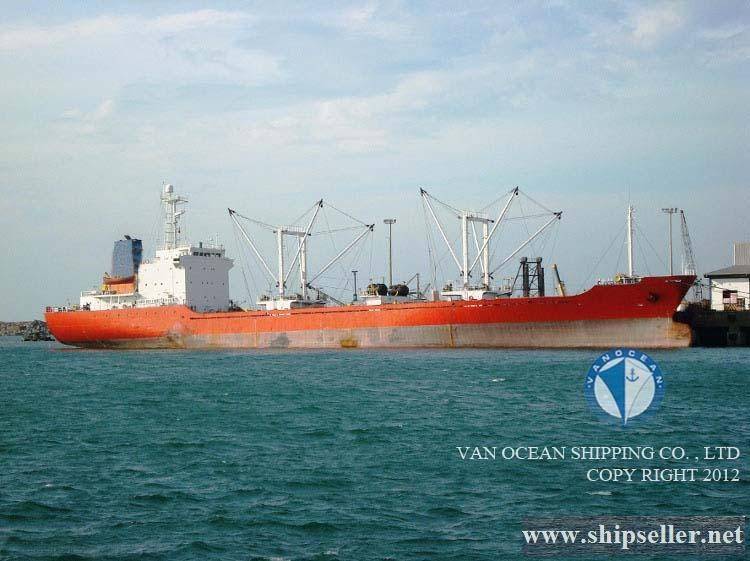

REF590 SHIKOKU DOCK., JAPAN 1987-11

NO. REF590
TYPE REEFER
FLAG PANAMA
PORT OF REGISTRY
BUILT built_in 1987-11
BUILT PLACE SHIKOKU DOCK., JAPAN
CLASS NK
SS
DD
LOA 127.52 M
LBP
BEAM 16.50 M
DEPTH 10.0 M
DRAFT 7.414 M (SUMMER)
GT 4961 MT;
PANAMA CANAL: 5497.23 MT;
SUEZ CANAL: 5288.58 MT
NT 2543 MT;
PANAMA CANAL: 3905.03 MT;
SUEZ CANAL: 4299.32 MT
DWT 5691 MT
FLOOR SPACE CAPACITY
GEAR DERRICKS 8×5 MT; UP 4×3 MT;
6.00 M OUTREACH
ME AKASAKA-MITSUBISHI/4900 BHP×127 RPM MAX/4410 BHP×123 RPM SERVICE SPEED
AE/GENERATOR 3 DIESEL GENERATOR SETS
PROPELLER 5 BLADES SOLID SKREW TYPE
REEFER PLANT R-22 DIRECT EXPANSION
SPEED/CONSUMPTION BALLAST ECO: 12.0 KNOTS ON 11.5 MT IFO380 CST, MGO: 0.00 MT;
BALLAST FULL: 14.5 KNOTS ON 13.0 MT IFO380 CST, MGO: 0.00 MT;
LADEN ECO: 11.0 KNOTS ON 12.5 MT IFO380 CST, MGO: 0.00 MT;
LADEN FULL: 14.0 KNOTS ON 14.5 MT IFO380 CST, MGO: 0.00 MT;
PORT CONSUMPTION IDLE: 2.00 MT IFO380 CST, MGO: 0.00 MT;
PORT CONSUMPTION WORK: 3.00 MT IFO380 CST, MGO: 0.00 MT;
FUEL TYPE
TANK CAPACITY FUEL: 615.2 MT;
GO: 115 MT;
FRESH WATER: 271 MT (BIASIS 85% SUBJECT TO RECONFIRMATION WITH MASTER PRIOR EACH FULL BUNKERING)
HOLD NUMBER 4
HATCH NUMBER 4
HATCH SIZE 6.30×6.0 M
COMPARTMENT 11
DECKS 3
DECK AREA 2450 SQM
DECK HEIGHT ALL HOLDS CLEAR DECK HEIGHT 2.20 M MIN
CAPACITY (CBFT) 221114
CAPACITY (CBM) 6261.2
TYPE OF THE VENT SYSTEM
VENT VERTICAL FRESH AIR SUPPLY-3.4 TIME/HR;
RECIRCULATION AIR 90-60 T/H
AIR CIRCULATION 90/HR
TEMPERATURE -25/+15 DC
COOLING SECTION 7
GRATINGS WOODEN: 5 MT MAX ALLOWABLE WEIGHT OF FORKLIFT INCLUDING CARGO
SIDE SHORING FITTED
INSPECTION PLACE
DELIVERY PLACE WEST AFRICA
PRICE USD 2.85 MILLION
REMARKS DELIVERY PROMPT IN WEST AFRICA;
VESSEL IS EQUIPPED WITH OCEAN FENDERS FOR HIGH SEAS TRANSSHIPMENT
