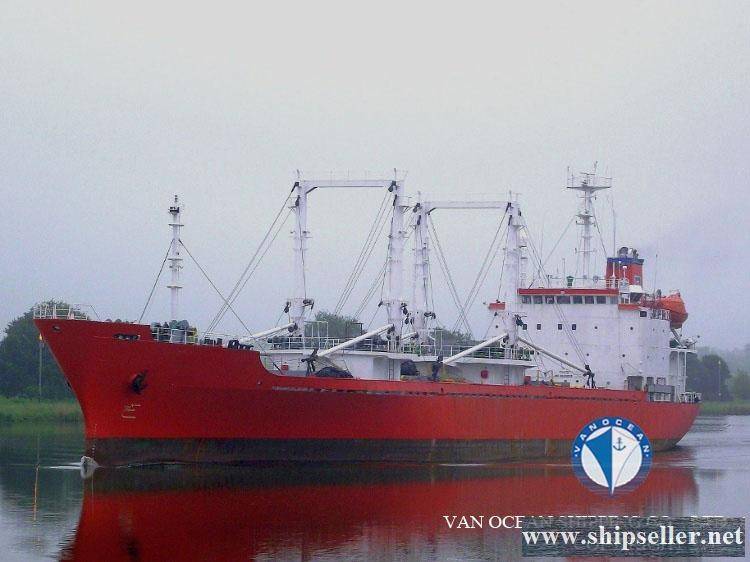

REF589 KYOKUYO S/ YARD, JAPAN 1991-01

REF589 KYOKUYO S/ YARD, JAPAN 1991-01
4,150,000.00
Title
REF589 KYOKUYO S/ YARD, JAPAN 1991-01
Ref No
RF137237
Built
1991
DWT
5,134
Flag
BAHAMAS
Model
REEFER
Additional information
Description
NO. REF589
TYPE REEFER
FLAG BAHAMAS
PORT OF REGISTRY
BUILT built_in 1991-01
BUILT PLACE KYOKUYO S/ YARD, JAPAN
CLASS NK
SS
DD
LOA 120.71 M
LBP
BEAM 16.60 M
DEPTH 10.0 M
DRAFT 6.80 M (SUMMER)
GT 4430 MT;
PANAMA CANAL: 5094 MT;
SUEZ CANAL: 4778.96 MT
NT 2222 MT;
PANAMA CANAL: 3827 MT;
SUEZ CANAL: 3634 MT
DWT 5134 MT
FLOOR SPACE CAPACITY
GEAR DERRICKS 6×5 MT, UP 3 MT;
6.50 M OUTREACH
ME MITSUBISHI 8UEC37LA 5603 BHP
AE/GENERATOR 3 DIESEL GENERATOR SETS
PROPELLER 4 BLADES SINGLE PITCH
REEFER PLANT R-22 DIRECT EXPANSION
SPEED/CONSUMPTION BALLAST ECO: 10.0 KNOTS ON 12.5 MT IFO380 CST, MGO: 0.00 MT;
BALLAST FULL: 14.5 KNOTS ON 15.5 MT IFO380 CST, MGO: 0.00 MT;
LADEN ECO: 10.0 KNOTS ON 13.5 MT IFO380 CST, MGO: 0.00 MT;
LADEN FULL: 14.0 KNOTS ON 16.5 MT IFO380 CST, MGO: 0.00 MT;
PORT CONSUMPTION IDLE: 2.00 MT IFO380 CST, MGO: 0.00 MT;
PORT CONSUMPTION WORK: 3.00 MT IFO380 CST, MGO: 0.00 MT;
FUEL TYPE
TANK CAPACITY FUEL: 649.82 MT;
GO: 79.62 MT;
FRESH WATER: 202 MT (BIASIS 85% SUBJECT TO RECONFIRMATION WITH MASTER PRIOR EACH FULL BUNKERING)
HOLD NUMBER 3
HATCH NUMBER 3
HATCH SIZE 7.91×6.40 M
COMPARTMENT 9
DECKS 3
DECK AREA 2548.71 SQM
DECK HEIGHT ALL HOLDS CLEAR DECK HEIGHT 2.20 M MIN
CAPACITY (CBFT) 237305
CAPACITY (CBM) 6720
TYPE OF THE VENT SYSTEM
VENT VERTICAL FRESH AIR SUPPLY-90 TIME/HR;
RECIRCULATION AIR 4 T/H
AIR CIRCULATION 90/HR
TEMPERATURE -25/+12 DC
COOLING SECTION 6
PALLET 1875
GRATINGS WOODEN: 5 MT MAX ALLOWABLE WEIGHT OF FORKLIFT INCLUDING CARGO
SIDE SHORING FITTED
INSPECTION PLACE WEST AFRICA
DELIVERY PLACE WEST AFRICA
PRICE USD 4.15 MILLION
REMARKS VESSEL IS EQUIPPED WITH OCEAN FENDERS FOR HIGH SEAS TRANSSHIPMENT
