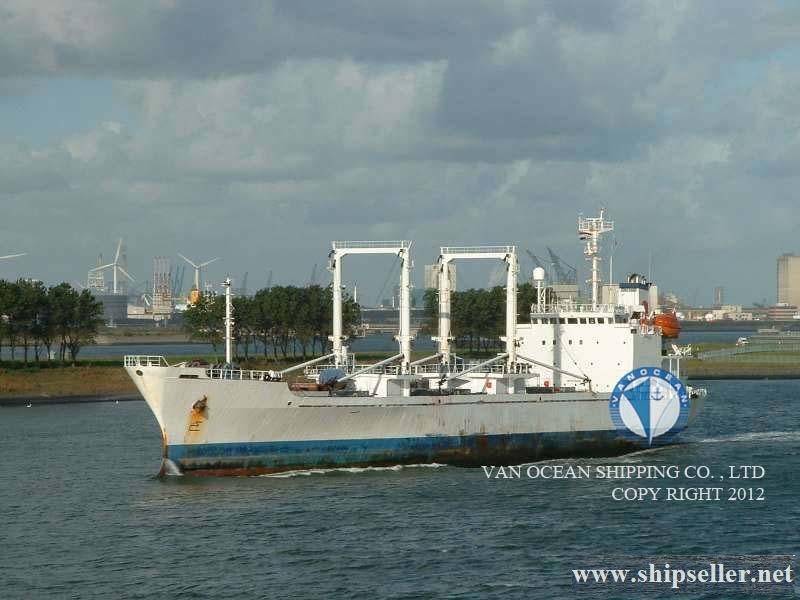

REF589 KYOKUYO S/ YARD, JAPAN 1991-01

NO. REF589
TYPE REEFER
FLAG BAHAMAS
PORT OF REGISTRY
BUILT built_in 1991-01
BUILT PLACE KYOKUYO S/ YARD, JAPAN
CLASS NK
SS
DD
LOA 120.71 M
LBP
BEAM 16.60 M
DEPTH 10.0 M
DRAFT 6.80 M (SUMMER)
GT 4430 MT;
PANAMA CANAL: 5094 MT;
SUEZ CANAL: 4778.96 MT
NT 2222 MT;
PANAMA CANAL: 3827 MT;
SUEZ CANAL: 3634 MT
DWT 5134 MT
FLOOR SPACE CAPACITY
GEAR DERRICKS 6×5 MT, UP 3 MT;
6.50 M OUTREACH
ME MITSUBISHI 8UEC37LA 5603 BHP
AE/GENERATOR 3 DIESEL GENERATOR SETS
PROPELLER 4 BLADES SINGLE PITCH
REEFER PLANT R-22 DIRECT EXPANSION
SPEED/CONSUMPTION BALLAST ECO: 10.0 KNOTS ON 12.5 MT IFO380 CST, MGO: 0.00 MT;
BALLAST FULL: 14.5 KNOTS ON 15.5 MT IFO380 CST, MGO: 0.00 MT;
LADEN ECO: 10.0 KNOTS ON 13.5 MT IFO380 CST, MGO: 0.00 MT;
LADEN FULL: 14.0 KNOTS ON 16.5 MT IFO380 CST, MGO: 0.00 MT;
PORT CONSUMPTION IDLE: 2.00 MT IFO380 CST, MGO: 0.00 MT;
PORT CONSUMPTION WORK: 3.00 MT IFO380 CST, MGO: 0.00 MT;
FUEL TYPE
TANK CAPACITY FUEL: 649.82 MT;
GO: 79.62 MT;
FRESH WATER: 202 MT (BIASIS 85% SUBJECT TO RECONFIRMATION WITH MASTER PRIOR EACH FULL BUNKERING)
HOLD NUMBER 3
HATCH NUMBER 3
HATCH SIZE 7.91×6.40 M
COMPARTMENT 9
DECKS 3
DECK AREA 2548.71 SQM
DECK HEIGHT ALL HOLDS CLEAR DECK HEIGHT 2.20 M MIN
CAPACITY (CBFT) 237305
CAPACITY (CBM) 6720
TYPE OF THE VENT SYSTEM
VENT VERTICAL FRESH AIR SUPPLY-90 TIME/HR;
RECIRCULATION AIR 4 T/H
AIR CIRCULATION 90/HR
TEMPERATURE -25/+12 DC
COOLING SECTION 6
PALLET 1875
GRATINGS WOODEN: 5 MT MAX ALLOWABLE WEIGHT OF FORKLIFT INCLUDING CARGO
SIDE SHORING FITTED
INSPECTION PLACE
DELIVERY PLACE
PRICE BUYERS OFFER
REMARKS VESSEL IS EQUIPPED WITH OCEAN FENDERS FOR HIGH SEAS TRANSSHIPMENT
