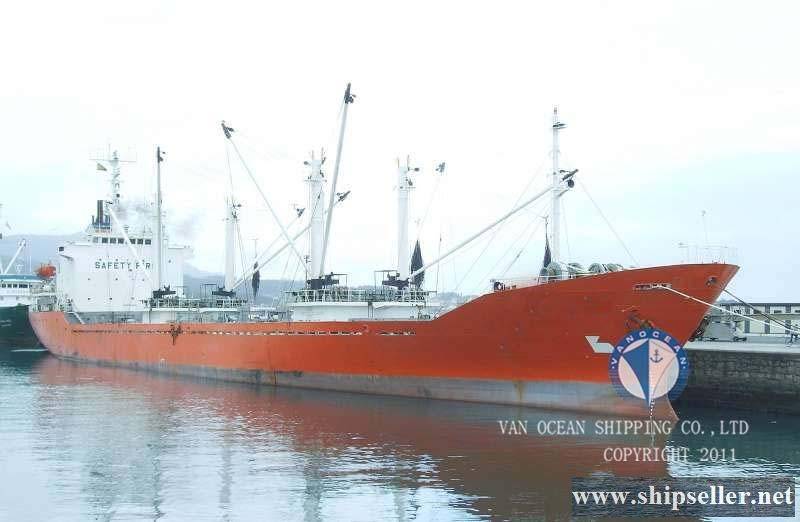

REF533 KOCHI JYUKO, JAPAN 1986

NO. REF533
TYPE REEFER
FLAG MALTA
BUILT built_in 1986
BUILT PLACE KOCHI JYUKO, JAPAN
PORT OF REGISTRY VALLETTA
CLASS NK
SS 2015-12
DD 2014-02
LOA 124.7M
LBP
BEAM 17.8 M
DEPTH 9.85 M
DRAFT 7.32 M (SUMMER )
GT INTERNATIONAL: 4936 MT
 PANAMA: 5655 MT
 SUEZ: 5230 MT
NT INTERNATIONAL : 3026 MT
 PANAMA : 4340 MT
 SUEZ : 4090 MT
DWT 6532 MT
LDT 3185 MT
FLOOR SPACE CAPACITY
GEAR DERRICKS 8×5 MTS (3.5 MTS IN U.P.)
ME MITSUBISHI 6UEC45LA 7000 BHP
AE/GENERATOR GENS: 3×YANMAR GEN×450KW BURNING IFO
SPEED/CONSUMPTION BALLAST : ABT 17 KTS ON ABT 18.5 MTS IFO 180 CST-RME 180
FRUIT/DEEP LADEN : ABT 16 KTS ON ABT 18.5 MTS IFO 180 CST-RME
FUEL TYPE IFO 180
BUNKERS
HOLD NUMBER 4
HATCH NUMBER 4
HATCH OPENINGS (WEATHER DECK) ALL 8.2M×6.2 M
SIDEPORT DOORS 4 A-DECK PORT SIDE
SIDE SHORINGS YES
COMPARTMENT 12
DECKS 3
DECK AREA 2941 SQM
DECK HEIGHT MIN 2.2M THROUGHOUT
CAPACITY (CBFT) 262671
CAPACITY (CBM) 7438
TYPE OF THE VENT SYSTEM VERT.VENT
TEMPERATURE
TEMPERATURE ZONES -30/+15℃
AIR CIRCULATIONS  90/45/22 PER HOUR
AIR RENEWALS 4/2/0 PER HOUR
COOLING SECTION 8
GRATINGS MAX LOAD 5MTS (CARGO +F/LIFT WITH 4 PNEUMATIC TYRES)
REEFER INFO 3×MYCOM
CONTAINER CAPACITY 12 FEU ON DECK
PALLETS 2250
PLUGS 24
INSPECTION PLACE BANGKOK
DELIVERY PLACE BANGKOK
PRICE USD 1.2 MILLION
REMARKS INSPECTABLE AND DELIVERABLE BANGKOK PROMPTLY.
