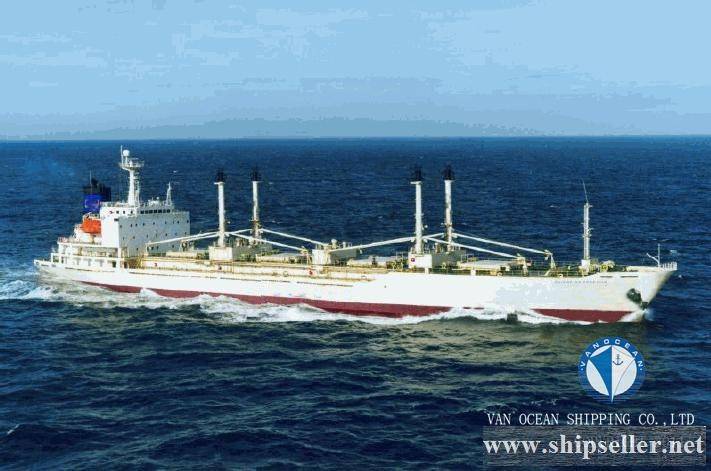

REF489/REEFER/1993-11-15/12137CBM/ USD 7.5 MILLION

REF489/REEFER/1993-11-15/12137CBM/ USD 7.5 MILLION
7,500,000.00
Title
REF489/REEFER/1993-11-15/12137CBM/ USD 7.5 MILLION
Ref No
RF803810
Built
1993
DWT
8,383
LDT
4,274
Flag
LIBERIA
Model
REEFER
Additional information
Description
NAME REF489
TYPE REEFER
FLAG LIBERIA
PORT OF REGISTRY MONROVIA
BUILT built_in 1993-11-15
BUILT PLACE FUKUOKA S.B, JAPAN
CLASS RMRS KM* ICE1
SS 2018-09
DD 2015-08
LOA 135.50M
LBP 127.96M
BEAM 20.20M
DEPTH 10.50M
DRAFT 7.750 M
GT 7533MT
8467MT (PANAMA)
8265MT (SUEZ)
NT 5330MT
6846MT (PANAMA)
6777MT (SUEZ)
DWT 8383MT (SUMMER)
8052MT (WINTER)
LDT/ DRAFT 4274 MT / 3.149M
FLOOR SPACE CAPACITY 4613 SQM
49654 SQFT
DOORS SIDEDOORS 4P  2 x 2M x3, 1.5 x 1.3M
GEAR DERRICKS 8X5T SWL OR 4X3.5T SWL UP
ALLOWABLE WEIGHT OF FORKLIFT MAXIMUM 5 MT (FORLIFT TO BE EQUIPED WITH MINIMUM 4 AIRTYRES)
ME AKASAKA-MITSUBISHI 8UEC45LA 9600 BHP (7060KW) x 158 RPM
AE/GENERATOR 3 x 480KW 3XDAIHATSU 6DL-20 750PS x 3
SPEED/CONSUMPTION 18.5 KONTS ON 27.5 (380)+1.5-4 (380)
FUEL TYPE IFO 380
BUNKERS (IFO 380) 1077 MT IFO 380 RMG 35
BUNKERS (MDO) 89 MT IFO 380 RMG 35
HOLD NUMBER 4
HATCH NUMBER 4
HATCH SIZE
COMPARTMENT 15
DECKS 4
DECK AREA
DECK HEIGHT ≥2.20
WATER CAPACITY FRESH WATER - 171.8MT
DRINKING WATER - 74.1MT
BALLAST WATER - 507.25 MT
CAPACITY (CBFT) 428618
CAPACITY (CBM) 12137
TEMPERATURE ZONES 8
TYPE OF THE VENT SYSTEM
VENT VERT
TEMPERATURE -30/+15
INDEPENDENT COOLING SECTION 1 A/BC, 2 AB/CD, 3 AB/CD, 4 AB/CD
AIR CIRCULATIONS 90/Hr
AIR RENEWALS 4/Hr
USDA YES,  VALID UNTIL 01/01/2014
360 QUALITY CERTIFICATE VALID UNTIL 15/09/2011
ANCHORS/ ANCHORS CHAIN 2PC’S x 3.860 MT; BOWER ANCHOR STOCKLESS JIS TYPE
1st SHACKLE x 13.75 M + 9 SHACKLES x 27.50 M; DIA = 54 MM
INSPECTION PLACE CHINA
DELIVERY PLACE CHINA
PRICE USD 7.5 MILLION
REMARKS REEFER PLUGS: 21
CONTAINER CAPACITY: 21 FEU ON WEATHER DECK & HATCHCOVERS
DIFFERENT TEMPS: 8/2 PER HOLD
