REF425/REEFER/1991-03/8498CBM/ USD 4.8 MILLION

REF425/REEFER/1991-03/8498CBM/ USD 4.8 MILLION
4,800,000.00
Title
REF425/REEFER/1991-03/8498CBM/ USD 4.8 MILLION
Ref No
RF115062
Built
1991
DWT
6,816.8
LDT
4,302.81
Flag
PANAMA
Model
REEFER
Additional information
Description

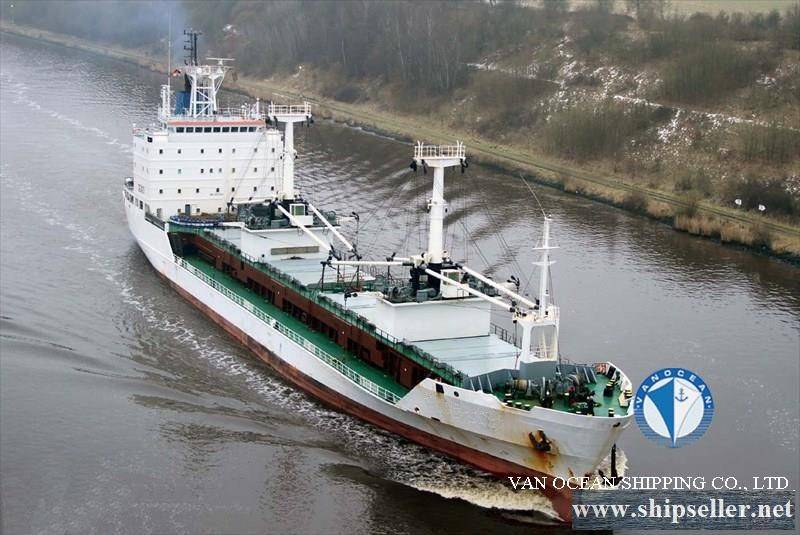

NAME REF425
TYPE REEFER
FLAG PANAMA
PORT OF REGISTRY BERGEN
BUILT built_in 1991-03
BUILT PLACE SHANGHAI SHIPYARD, CHINA
CLASS GL (LOW ICE STR)
SS 2016-06
DD 2013-11
LOA 102.50 M
LBP
BEAM 18.55 M
DEPTH 10.15 M
DRAFT 7.92 M
GT 6429 MT
NT 3588 MT
DWT 6816.8 MT
LDT 4302.81 MT
FLOOR SPACE CAPACITY
GEAR DERRICKS 8×5-10MT, 4×5MT UP
17.5 M OUTREACH
ME SULZER 5RTA52 9060 BHP 126 RPM
AE/GENERATOR 3 MAIN GENERATORS 750KVA EACH
1 EMERGENCY 115KVA
SPEED/CONSUMPTION FISH LADEN ABT. 16.0 KTS ON ABT. 29.4T F-380 INCL AUX;
FRUIT LADEN ABT. 17.4 KTS ON ABT 28.5T F-380 INCL AUX;
BALLAST ABOUT 18 KTS ON ABT 27.3T IFO-380+0.5 GAS OIL;
ECO BALLAST ABOUT 13.3 KTS ON ABOUT 14.5T F-380;
ECO FRUIT LADEN ABOUT 13.0 KTS ON ABOUT 18T-380
FUEL TYPE
HOLD NUMBER 4
HATCH NUMBER 4
HATCH SIZE 12.38M×8.0M
COMPARTMENT 15
DECKS 4
DECK AREA 3441SQM
DECK HEIGHT MIN 2.25 M
CAPACITY (CBFT) 300124
CAPACITY (CBM) 8498
BUNKER TANK CAP.: FUEL: 831.5 CBM;
GO: 213.4 CBM;
FRESH WATER: 89.062 CBM
TYPE OF THE VENT SYSTEM
VENT VERTICAL FROZEN PRODUCTS 45X/H, FRUITS/BANANAS 90X/H
TEMPERATURE -25/+13DC
DIFFERENT TEMPERATURE 1AB/C/2AB/CD//3AB/CD/4AB/CD
AIR CHANGE 90/HR
COOLING SECTIONS 8
THRUSTER FITTED
PALLET ABT 2600 PALLETS (1×1.2M)
FISH ABT 4000MT
REEFER PLUG 36
CONTAINER IN HOLD: 84TEU/30FEU+41TEU
ON DECK: 30FEU
GRATINGS PLYWOOD
INSPECTION PLACE
DELIVERY  PLACE CHINA, 6 WEEKS LATER
PRICE USD 4.8 MILLION
REMARKS 8 SIDE DOORS
