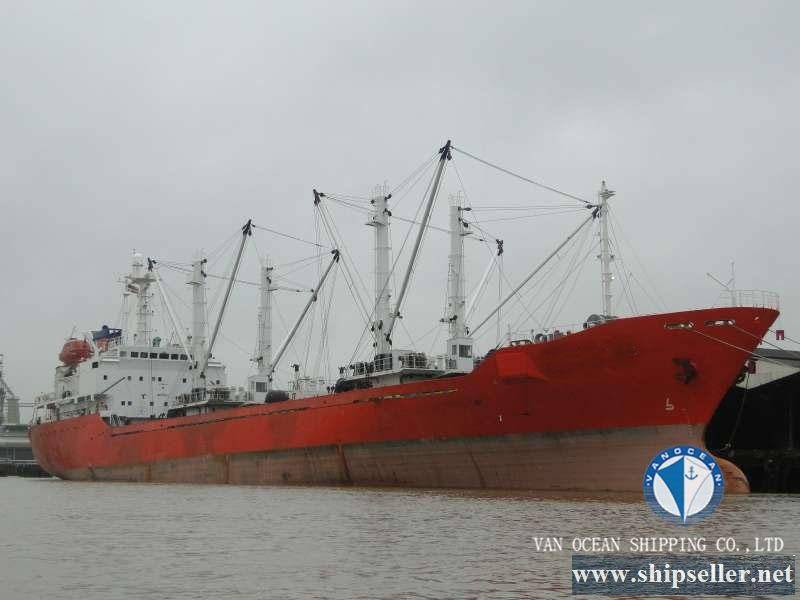

REF366/REEFER/1989-1/5580CBM/USD1.6 MILLION

NAME REF366
TYPE DEEP FREEZER/SASHIMI CARRIER
FLAG PANAMA
PORT OF REGISTRY PANAMA
BUILT built_in 1989-1
BUILT PLACE FUKUOKA SHIPBUILDING Co, JAPAN
CLASS NK MNS RMC (WITHDRAWN)
SS 2013-11
DD 2011-04
LOA 117.40M
LBP 107.0M
BEAM 16.42M
DEPTH 9.95M
DRAFT SUMMER: 7.114 M
GT INTERNATIONAL: 4579 MT
PANAMA: 5090MT
SUEZ: 4767MT
NT INTERNATIONAL: 2156MT
PANAMA: 3593 MT
SUEZ: 3767 MT
DWT 5053MT
LDT 2828MT
FLOOR SPACE CAPACITY 2184SQM
GEAR DERRICKS 8×5MT / UP 4×3MT, 6M OUTREACH
ME MITSUBISHI 8UEC37LA 5600 BHP×210 RPM MAX, 5040 BHP×203 RPM SERVICE SPEED
AE/GENERATOR A/E: 2×DAIHATSU 6DLB-22 900 PS×720RPM
GEN: 763 KVA
PROPELLER 4 SOLID KEYLESS BLADES
SPEED/CONSUMPTION DEEP LADEN 15.50 ON 15(380)+2.5(380)
BAL/BAN 16.5 ON 15
FUEL TYPE IFO380
HOLD NUMBER 4
HATCH NUMBER 4
HATCH SIZE  5.50×5.00
COMPARTMENT 11
Hold No.1:     A,B
Hold No.2-4:   A,B,C
DECKS 3
DECK AREA 2184SQM
DECK HEIGHT MIN 2.20M
CAPACITY (CBFT) 197056
CAPACITY (CBM) 5580
TANKS CAPACITY FUEL: 728.26 MT;
GO: 359 MT;
FRESH WATER: 240 MT
REEFER PLANT R-22 DIRECT EXPANSION
COOLING SECTIONS 8
GRATINGS WOODEN- MAX LOAD 5MT
(CARGO + FORKLIFT WITH 4 PNEUMATIC TYRES)
TYPE OF THE VENT SYSTEM
VENT VERTICAL FRESH AIR SUPPLY-3.4 TIME/H;
RECIRCULATION AIR 90-60 T/H
SIDE SHORING YES
TEMPERATURE -55/+15℃ IN HO.2-4 NO.1 -32/+15℃
INSPECTION PLACE BANGKOK
DELIVERY PLACE BANGKOK
PRICE USD: TOTAL 1.6 MILLION (DOWN PAYMENT: 0.5 MILLION USD AND BALANCE 12 MONTHES INSTALLMENT PAYMENT)
REMARK ALL SPEEDS/CONSUMPTIONS BASIS CALM SEAS/MAX BEAUFORT 3.
VSL IS BURNING MDO WHEN NAVIGATING AND/OR MENOEUVERING AT REDUCED RPM, IN NARROW/SWALLOW/RESTRICTED WATERS (E.G. ENTERING/LEAVING PORT, TRANSITING CANALS AND SHIFTINGS AT T/S ANCHORAGES ETC.)
VESSEL LAID UP IN BANGKOK SINCE APRIL/2011, LAID UP MORE THAN TWO built_inS;
VESSEL IS EQUIPPED WITH OCEAN FENDERS FOR HIGH SEA TRANSSHIPMENT
INTERMEDIATE PASSED 04/2011
NK MNS RMC IS WITHDRAWN
LAID UP BKK 3YRS OUT OF NK CLASS REQUIRES REACTIVATING, RECLASSING BUT LOW CAPITAL DEAL.
