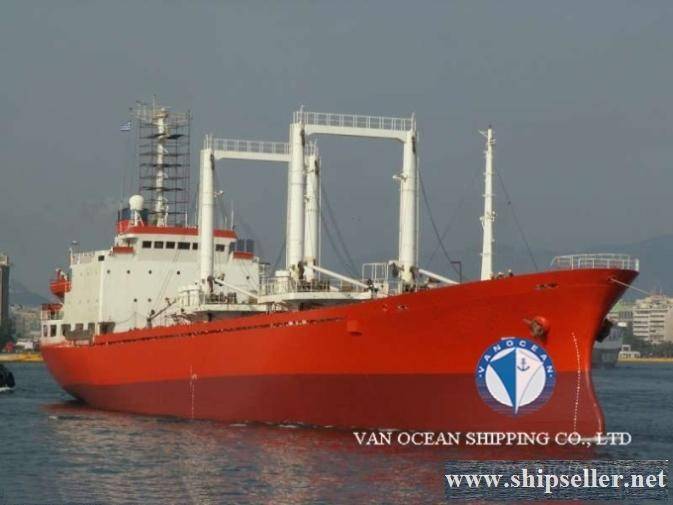

REF119/REEFER/1980-10-29/5050.71CBM/ USD 1.6 MILLION

REF119/REEFER/1980-10-29/5050.71CBM/ USD 1.6 MILLION
1,600,000.00
Title
REF119/REEFER/1980-10-29/5050.71CBM/ USD 1.6 MILLION
Ref No
RF102348
Built
1980
DWT
4,274.99
LDT
2,719.81
Flag
KIRIBATI
Model
REEFER
Additional information
Description
NO. REF119
TYPE REEFER
PORT OF REGISTRY TARAWA
FLAG KIRIBATI
BUILT built_in KEEL LAID: 1980-06-14;
BUILT: 1980-10-29
BUILT PLACE MIYOSHI SHIP BUILDING CO., JAPAN
CLASS ISCLASS (INTERNATIONAL SHIP CLASSIFICATION)
SS
DD
LOA 112.90 M
LBP 105.00 M
BEAM 16.00 M
DEPTH 9.72 M
DRAFT SUMMER: 6.516 M;
WINTER: 6.381 M;
TROPICAL: 6.651 M;
FRESH: 6.645 M;
TROPICAL FRESH: 6.780 M;
MAXIMUM SUMMER DRAFT: 6.78 M
DISPLACEMENT AT SUMMER DRAFT 6994.80 MT
PANAMA GT/NT 4586.78 / 3240.22
SUEZ GT/NT 4295.18 / 3239.75
GT 4056 MT
NT 1678 MT
DWT SUMMER: 4274.99 MT
LIGHTWEIGHT 2719.81 MT
FLOOR SPACE CAPACITY
GEAR DERRICKS 6×3 MT
ME KOBE MITSUBISHI
TYPE 6UEC52 / 105D
SUPERCHARGED, TWO STROKE CYCLE, SINGLE ACTING CROSS HEAD, DIRECT REVERSING DIESEL ENGINE
MAX CONTINUOUS OUTPUT: 6200BHP AT 175RPM
CONTINUOUS SERVICE OUTPUT: 5580 BHP AT 169RPM
AE/GENERATOR 3×DAIHATSU TYPE DS 18A
KW/RPM: 400/900
VOLT/HZ: 440/60
SPEED/CONSUMPTION 17 KTS
ME CONSUMPTION: 10MT/DAY
AE CONSUMPTION: 1.8MT/DAY(SAURY LADEN), 3.0MT/DAY(TUNA LADEN)
ME FUEL OIL CONS SEA SPEED LADEN 15MT / BALLAST 13MT / ECO SPEED LADEN 13MT / ECO SPEED BALLAST 11MT
ME SYSTEM LUB OIL CONS 50LT
ME CYLINDER OIL CONS 160LT
DIESEL GENERATOR BLENDED OIL CONS LADEN 3.5MT / BALLAST 1.8MT / PORT IDLE 1.5MT / PORT WORKING 2.5MT / LUB OIL CONS 40LT
BOILER PORT CONS 0.6MT
FUEL TYPE IFO180
HOLD NUMBER 3
HATCH NUMBER 3
HATCH SIZE NO.1: 6.50×5.50 M
NO.2 & 3: 6.60×5.50M
COMPARTMENT 9
DECKS
DECK AREA 2068.31 SQM
DECK HEIGHT
CAPACITY (CBFT) 178367
CAPACITY (CBM) 5050.71
TYPE OF THE VENT SYSTEM
VENT
TEMPERATURE -30/+15 DC
P&I CLUB MARITIME MUTUAL INSURANCE ASSOCIATION (NZ) LTD
TPC AT SUMMER DRAFT 13.42
PROPELLER NAKASHIMA PROPELLER CO., LTD
5 BLADES SOLID TYPE, DIAM=370MM, PITCH=3525MM
WATER BALLAST CAPACITY 89 MT (FORE PEAK ONLY)
FRESH WATER CAPACITY 125 MT
FUEL OIL CAPACITY 900 MT
DIESEL OIL CAPACITY 180 MT
LUB OIL TANK 81.54 CBM
HATCH TYPE MACGREGOR HATCHCOVERS HYDRAULICALLY OPERATED
MACGREGOR TWEENDECK COVERS FOLDING TYPE, WIRE OPERATION
COOLING SYSTEM DIR EXPANSION R-22
AIR CHANGES 90 / HOUR FULL – 40 / HOUR SLOW
AIR RENEWALS 4 / HOUR
COOLING SECTIONS 6
1A / 1BC / 2A / 2BC / 3A / 3BC
GRATINGS HOLED WOODEN – MAX STRENGTH FOR FORKLIFTS (4 PNEUMATIC TIRES) 5MT
DISTANCE FROM BOW TO NO.1 HATCH CENTER: 33.4 M
NO.2 HATCH CENTER: 53.6 M
NO.3 HATCH CENTER: 74.6 M
BRIDGE: 83.3 M
DELIVERY PLACE CHINA
INSPECTION PLACE CHINA
PRICE USD 1.6 MILLION
REMARK SS, ANNUAL AND OVERHAUL COMPLETED IN 2014-11
