Title
142M 4500T FLOATING DOCK
Ref No
RF200994
Additional information
Description

No.: ENG516

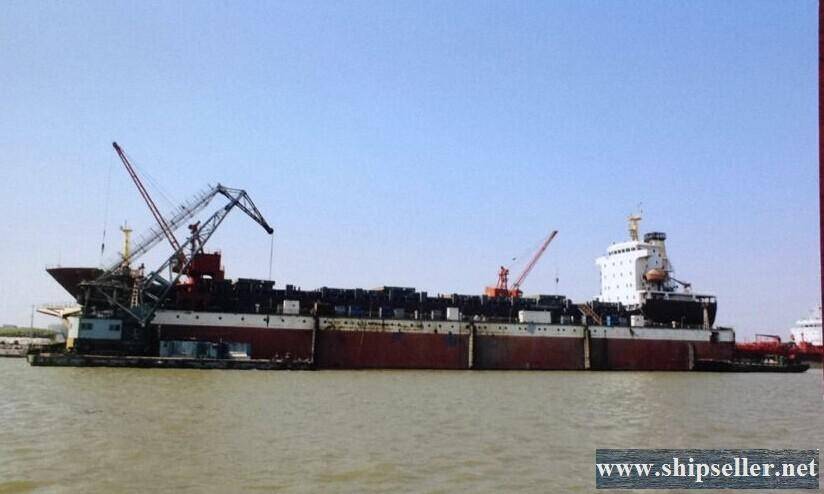

142M 4500T FLOATING DOCK



Built:2008,China



Class:CCS



LOA(including
fender0.5m):142.7m



Length of
platform:5.4m(fore),7.2m(aft)



Dock hull length:129.6m



LOB(including
fender0.5m):34.7M



Molded Breath:34.2m



Inner breath of the dock
hull:27m



Height of dock hull(The
vertical section at the pantoon ):3.6m



Height of dock
hull(The  pantoon deck line):3.5m



Work draft:2.7m



Max submerged:9.7m



Pantoon deck
cambered(straight):0.1m



The top deck from the
baseline:12.00m



Safety deck from the base
line:9.20m



Widtth of the dock
wall:3.6m



Design lifting force:4500t



Frame space:0.6m



complement:15P



Inspect and Delivery
Place:China
