Description

No.: ENG516

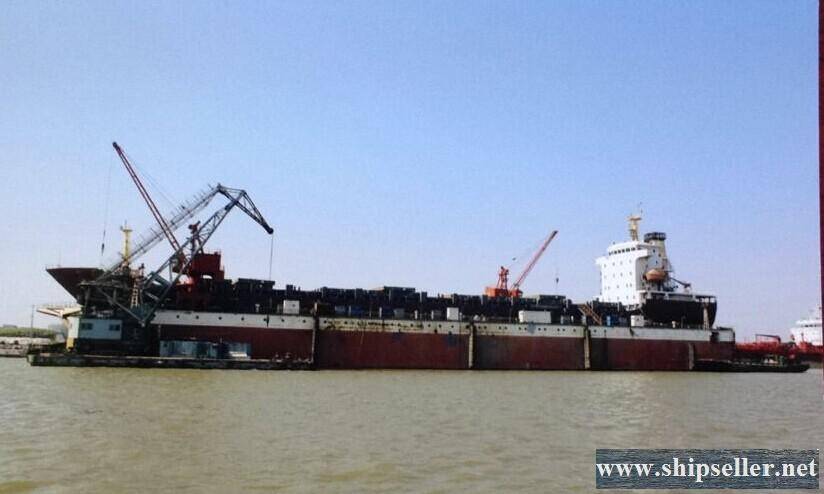

142M 4500T FLOATING DOCK

Built:2008,China

Class:CCS

LOA(including fender0.5m):142.7m

Length of platform:5.4m(fore),7.2m(aft)

Dock hull length:129.6m

LOB(including fender0.5m):34.7M

Molded Breath:34.2m

Inner breath of the dock hull:27m

Height of dock hull(The vertical section at the pantoon ):3.6m

Height of dock hull(The  pantoon deck line):3.5m

Work draft:2.7m

Max submerged:9.7m

Pantoon deck cambered(straight):0.1m

The top deck from the baseline:12.00m

Safety deck from the base line:9.20m

Widtth of the dock wall:3.6m

Design lifting force:4500t

Frame space:0.6m

complement:15P

Inspect and Delivery Place:China
