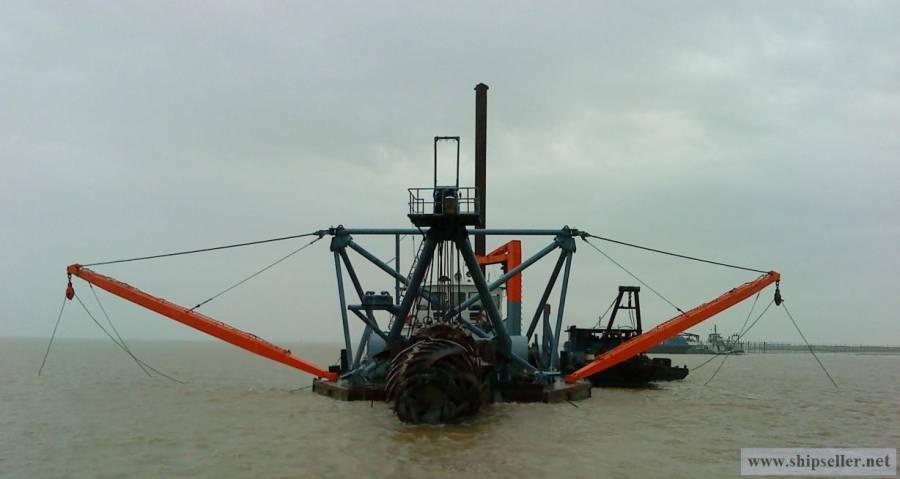

IHC-BEAVER 3300 Cutter Suction Dredger

IHC-BEAVER 3300 Cutter Suction Dredger
1.00
Title
IHC-BEAVER 3300 Cutter Suction Dredger
Ref No
RF108645
Built
1979
Flag
china
Model
200135 Cutter Suction Dredger
Additional information
Description
             IHC-BEAVER 3300 Cutter Suction Dredger
                           Principal Particular

General Dimension


             L.O.A: 49.8m


             B.M: 11.9m


             D.M: 2.85m


             Draft: 1.7m


Dredger Capacity


             Discharge Capacity: 6000m³/h


             Dredging Capacity: 1250m³/h


             Dredger Depth: 16m/45°


             Suction pipe dia: 650mm(Ladder Pump)/650mm(Main Pump)


             Discharge Distance: Max. 3km





Main Engine & Gen


Main Engine: Caterpillar D399AT/power: 1200hp/rpm1200*2sets


Main Gen: 4M1702-25 827KW


Main Pump


Model&Maker: IHC-Beaver3300


Capacity & Total Head: 6000m³/hr


Suction dia: 650mm


Discharge dia: 650mm
