2000CBM/HR CUTTER SUCTION HOPPER DREDGER FOR SALE

FROM DIRECT OWNER ,

WE CAN DEVELOP BELOW CUTTER SUCTION DREDGER  NON SELF-PROPELLED BARGE FOR SALE  [ NOT AVAILABLE FOR SALE FOR THE COUNTRIES AROUND CHINA]

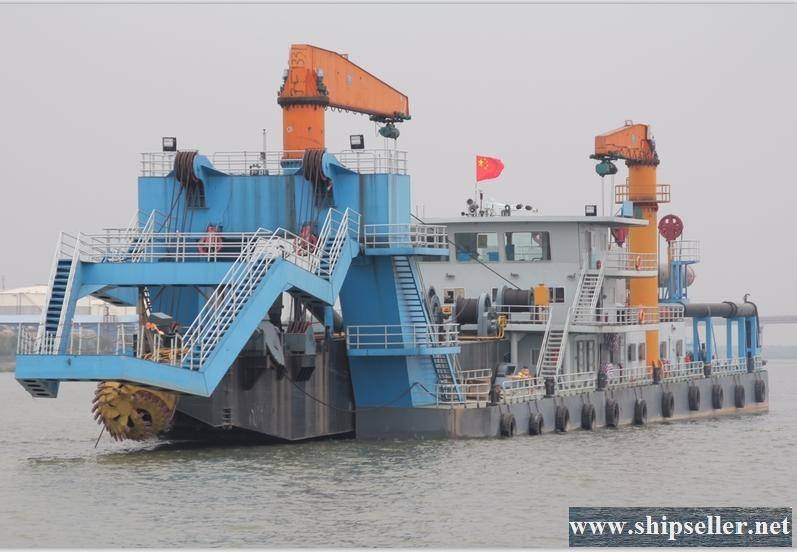

2000CBM/HR CUTTER SUCTION DREDGER

NON SELF-PROPELLED BARGE

CLASS: ZC

NAVIGATION  AREA : COSTAL

BUILT: 2011 CHINA

GRT/NRT: 1252 / 375T

L ENGTH WITH CUTTER HEAD 85M

L/B/D: 66 / 15 / 4.2M

DRAFT: 2.4 M

DREDGING DEPTH(under water):1.5M-25.0M

DISCHARGE DISTANCE :3000M

DISCHARGE HIGH:4.0M

SUCTION  AND DISCHARGE PIPE DIAMETER:800/750MM

DREDGING RATE :2000M3/H

PUMP DIESEL ENGINE: 16V240ZC*2940KW*1000R/MIN*1SET

 GEAR BOX: NBC4200A* 2.63:1*1SET

PUMP:700WN*8500m3/h*

Pump Discharge 65m *380r/min

CUTTER HYDRAULIC DIESEL UNIT: XCW12V200ZCD-1,1440Kw*100rpm

UNDERWATER PUMP GENERATOR DIESEL UNIT: XCW12V200ZCD-1, 1440KW *1000RPM

MAIN GENERATOR DIESEL UNIT: G128ZLCaF-2, 240KW

MAIN GENERATOR : TFXH-200, 200KW

Spud /Pile 2 * 35m L*1.5m diameter , 55Ton

CUTTER 2200MM DIAMETER, 1000KW,6 BLADES WITH 3 SPEED

COMPLEMENT:14P
