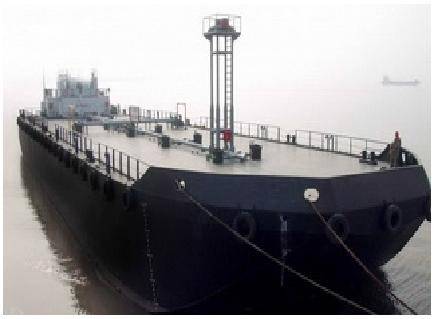

2 units of 230 ft 3750m3 Oil Barges

230 ft x 60 ft x 18ft Oil Barge

SHIP PARTICULARS

Length Overall
 230 ft (70.10m)

Length B.P
 67.30m

Beam Moulded
 60 ft (18.29m)

Depth Moulded
 18 ft (5.49m)

Draft Designed
 3.63m

Class Notation:
 BV I* Hull* Mach Barge – Oil, Unrestricted Navigation.

`condition`:
 Complete on 2008

 Complete on 2008

GRT:
 1834 t

NRT:
 807 t

Lightship Weight:
 970.19MT

Displacement:
 4247.55MT at summer graft

Tank Capacity:
 Â±3277.50MT

Hull Material:
 Steel

description_add

This double hull and double bottom oil barge is designed for carrying base oil and finished oil which flashpoint is below 60ºC.

Tank age

Fresh Water:
 Â±21 M³

Fuel Oil:
 Â±8 M³

Cargo Tank:
 Â±3750 M³

Dirty Oil Tank:
 Â±16 M³

Sewage:
 Â±16 M³

Machinery, Equipment, & Piping

Gargo Fuel Pump:
 2 x 2GC/BL350 Q=350 M³/hr, P=0.8Mpa, 1500rpm.

Reduction Gear Box:
 2 x 135 r = 1:1.

Diesel Engine:
 2 x for starting cargo fuel pump, 6135AZcaf, w=190kW/220hp, n=1500rpm.

Generator:
 2 x 24kw Daewoo, 415V/50Hz/3ph

General Pump:
 1 x 22 m³/hrx26m/h

Fire Pump:
 1 x 22 m³/hrx26m/h

Oily Dirty Water Separator:
 0.5m³/hr

Hall’s anchor:
 1 x 900kg, wire cable Φ28 x 200M
