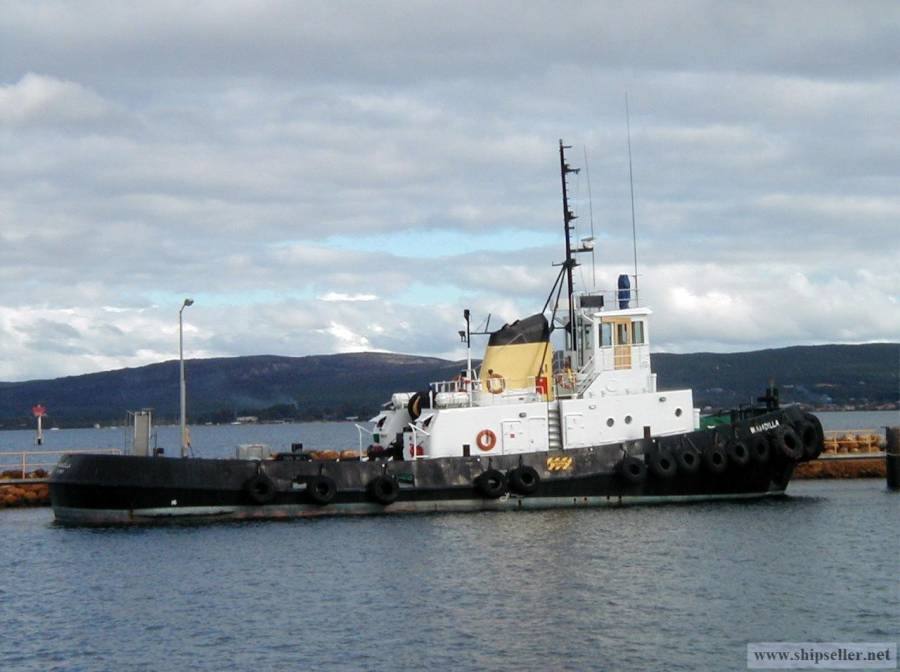

sell 2940KW CCS TUGBOAT lian yun gang yu hang hailu transportation

lian yun gang yu hang hailu transportation co. ltd offers:

LENGTH OVERALL:62.00M

LENGTH OF WATERLINE:60.00M

LENGTH BETWEEN PERPENDICULAR:55.8M

BREADTH MOULDED:12.6M

DEPTH MOULDED:6.00M

DESIGN DRAFT:4.80M

FRAME SPACE:0.6M

LONGITUDINAL:0.58M

TANK CAPACITY

F.O. TANK:~438M3

LIGHT D.O TANK:~152M3

FW TANK:188M3

BALLAST WATER TANK:500M3

The vessel to be designed with two engine,two fixed duct propeller,double engine,two rudder propulsion and maneuvering system.

M/E MODEL:LB8250ZC

MCR of single engine:1470KW

Max RPM of single engine 750rpm

Gear box ratio:3.9474:1

One set of hydraulic and pitch controllable side thruster to be equipped on the bow of the vessel,which is driven by electric motor.

Electrical motor power:180KW

Thrust force:32KN

Complememt:15

Speed:12.5Knots
