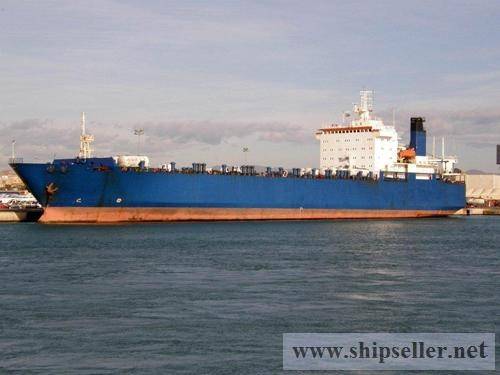

1992 Built Cargo Ro Ro with Stern Starboard Quarter Ramp For Sale

1992 Built Cargo Ro Ro with Stern Starboard Quarter Ramp For Sale
1.00
Hakkında
1992 Built Cargo Ro Ro with Stern Starboard Quarter Ramp For Sale
Reference Number
RF198185
Model
Cargo Ro Ro
Ek Bilgiler
İlan Detayları
· Reference ID DC0305
· Vessel Type 1992 Built Cargo Ro Ro with Stern Starboard Quarter Ramp
· Built St. Petersburg 1992
· DWT 13480 mt DWAT on 8.79 m draft
· Flag Italian
· Dimensions 169,40 m LOA, 151,60 m 1bp, 23,80 m beam,
· Class GL 100 A1 Ice class 1B
· GT 16940 gt / 5082 nt
· Cubics 26450 cbm
· Speed 17 knots on 43 ts IF 380 – 16 kn on 33 mt, port cons. 2,5/4 mt mdo
· Engines 2 B+W 6600 hp each 159 rpm, 2 cp prop., twin screw
· Shaft generator 900 kw
· Bunker cap. 1400 mt fuel, fw 170 ts, ballast 3000 ts
· Accommodation For 2/4 drivers
· Configuration Vessel is divided in 2 compartments (fore/aft) by a transversal watertight bulkhead with following openings:
· Maindeck: stbd sliding door 7 x 5,70 m
· Lowerdeck 3 side hinged doors central 6 x 3.50 m stb and Portside 4,20 m 3,50 m each
· Tankktop side hinged door 6 x 3,30 m
· Car Decks
· 2 hoistable car-decks in each compartment of maindeck
· Height m.deck with 2 cardecks hoisted: 5, 65 m
· Height m.deck with 1 cardeck down: 3, 40/3, 60-m fore/aft compart.
· Height m.deck with both cardecks down: 1, 85 m in both compartments
· Height lower cardeck: 2, 10 m in both compartments
· Height lowerdeck: 3,60m but access for 40' is limited to 3 m due to slope of ramp
· Height tanktop: 3, 40 m but access for 40' units as for lowerdeck
