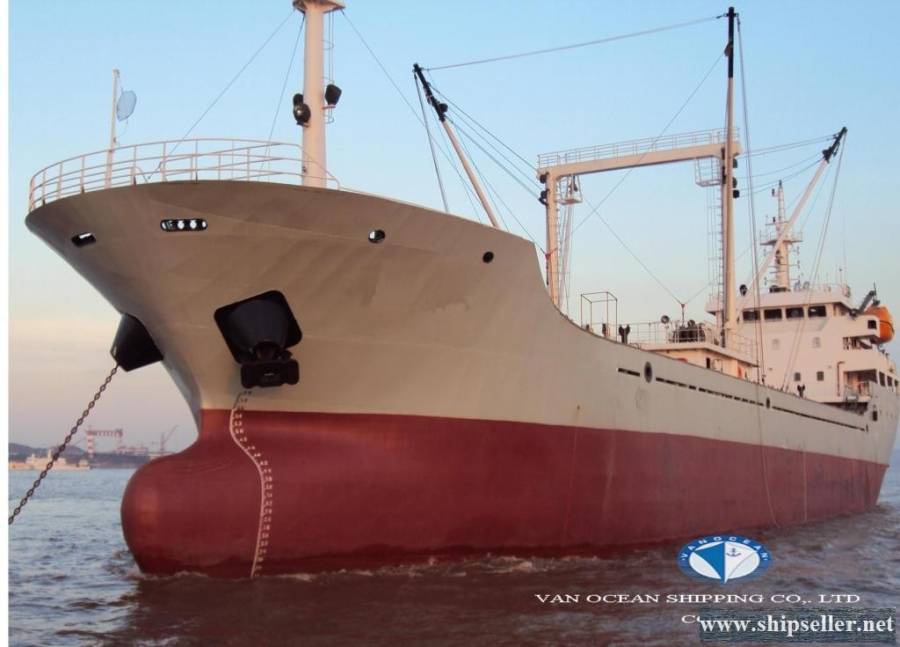

REF634 NINGBO DAIJIANG SHIPBUILDING CO., LD, CHINA 2012

NO. REF634
TYPE
FLAG BELIZE
PORT OF REGISTRY
HOME PORT BELIZE CITY
BUILT built_in 2012
KEEL LAID TIME 2010-09-06
FINISHING TIME 2012-09-07
BUILT PLACE NINGBO DAIJIANG SHIPBUILDING CO., LD, CHINA
CLASS
SS
DD
LOA 78.88 M
LBP
BEAM 13.20 M
DEPTH 7.20 M
FULL DRAFT  5.60 M
DRAFT LIGHT 2.60 M
GT 1995 MT
NT 1035 MT
DWT 2700 MT (SUMMER)
FLOOR SPACE CAPACITY
GEAR DERRICKS 2×0.9 MT
ME 1×CHINA ZHONGCE GN6320ZC2B, 735 KW
AE/GENERATOR 2×X6160Z-1, 280 KW;
1×WD615.67 CD, 138 KW
BOILERS
SPEED/CONSUMPTION 10 KNOTS
FUEL TYPE MGO/IFO120
HOLD NUMBER 4
HATCH NUMBER 2
HATCH SIZE 4.36×4.13 M
COMPARTMENT
DECKS 2
DECK AREA
DECK HEIGHT
CAPACITY (CBFT) 115127
CAPACITY (CBM) 3260
BUNKERS  MGO: 100 MT;
IFO120: 250 MT;
FRESH WATER: 250 MT
REFRIGERANT BRINE
TYPE OF THE VENT SYSTEM
AIR CIRCULATION
AIR RENEWALS
TEMPERATURE -20 DC
REFRIGERATING MACHINE 12.5 KW×3 SETS
ACCOMMODATION
NAVIGATION AREA A1+A2+A3
COOLING SECTIONS
INSPECTION PLACE CHINA
DELIVERY PLACE CHINA
PRICE USD 3.0 MILLION
REMARKS
