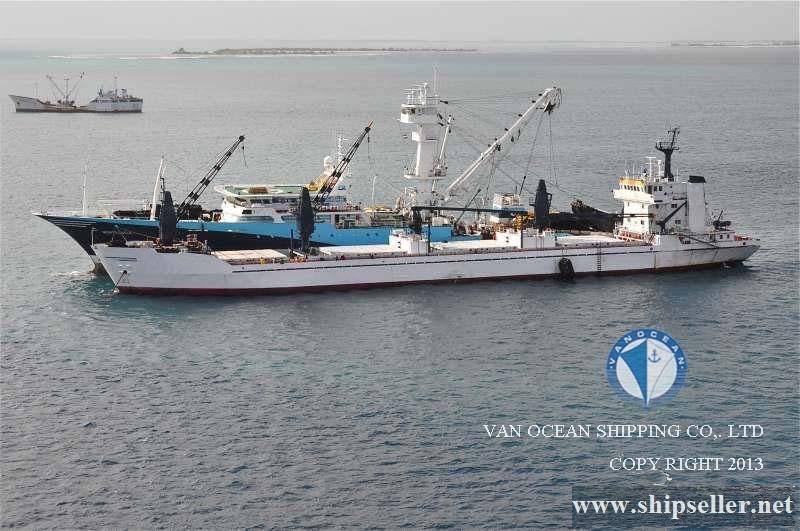

REF619 YVC YSSELWERF B. V., NETHERLANDS 1978-05

NO. REF619
TYPE REEFER CARRIER
FLAG PANAMA
BUILT built_in 1978-05
BUILT PLACE YVC YSSELWERF B. V., NETHERLANDS
CLASS LR
CUOTA +100 A1+LMC+UMS+ICE CLASS 3
CLASS STATUS CLASS STATUS DUE 2015-12-20
SS
DD
LOA 96.45 M
LBP 90.40 M
BEAM 13.85 M
DEPTH TO UPPER DECK 7.70 M
DRAFT 5.02 M
GT 2689 MT
NT 1383 MT
DWT 3439 MT
FLOOR SPACE CAPACITY 1569 SQM
GEAR CRANES 3×3 MT, 1×2.5 MT
ME MAK 8 M 453 AK, 2800 BHP AT 550 RPM, 2061 KW
AE/GENERATOR SHAFT GENERATOR: 450 KVA (360 KW), 380 V, 50 HZ (NEW 2013);
2×CATERPILLAR OF 335 BHP EACH AT 1500 RPM;
2×ALTERNATORS 280 KVA (224 KW), 380 V, 50 HZ
SPEED/CONSUMPTION 11 KNOTS;
AT SEA: 8.5 MT GAS OIL;
AT PORT: 1.2 MT GAS OIL
PROPELLER CONTROLLABLE PITCH PROPELLER
DECK EQUIPMENT 3×CRANES EACH 3 MT;
1×CRANE 2.5 MT;
4×MEC. TD-HATCH COVERS NR. 1 (8.71×5.89), 2-4 (9.4×8.52);
4×MEC. WD-HATCH COVERS (SEE PLAN)
NAVAIDS AND ELECTRONICS FULLY EQUIPPED;
GYRO COMPASS;
AUTO PILOT;
SATELLITE NAVIGATOR;
RADAR;
UVF;
ECHOSOUNDER;
ETC.
FUEL TYPE
HOLD NUMBER 4
HATCH NUMBER 4
HATCH SIZE
COMPARTMENT 8
DECKS
DECK AREA
DECK HEIGHT
CAPACITY (CBFT) 177972
CAPACITY (CBM) 5040
BUNKERS  GO: 362 CBM;
F.W.: 42 MT;
F. W. GENERATORS: EVAPORATOR: 5 TONS/DAY FRESH WATER
DECK CAPACITY TANKTOP: 2.36 MT/SQM;
TWEEN DECK: 1.94 MT/SQM;
TWEEN DECK HATCH: 2.17 MT/SQM;
FLOORSPACE: 1569 SQM;
BALLAST: 740 MT
FREEZING SYSTEM 3 COMPRESSORS GRENCO TYPE RC41;
REFRIGERANT R22
TYPE OF THE VENT SYSTEM VERT.
VENT/AIR CIRCULATION
VENT
AIR CHANGE 70/HOUR
FRESH AIR RENEWAL 4/HOUR
TEMPERATURE -25/+12 DC
COOLING SECTIONS 4
CONTAINER CAPACITY
REEFER PLUGS
PALLET
INSPECTION PLACE TBA
DELIVERY PLACE TBA
PRICE USD 1.6 MILLION
FORKLIFT CAPACITY VESSEL SUITABLE TO LOAD WITH FORKLIFTS WITH A SERVICE WEIGHT UP TO 3 MT INCL. CARGO UNITS
