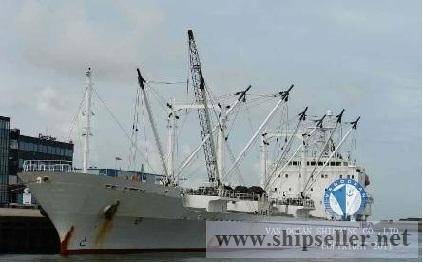

REF525 IMABARI S.B. JAPAN 1988

NO. REF525
TYPE REEFER
FLAG PANAMA
PORT OF REGISTRY PANAMA
BUILT built_in 1988
BUILT PLACE IMABARI S.B. JAPAN
CLASS NK
SS 2013-10-22
DD 2013-10-22
LOA 136.83 M
LBP 129.00 M
BEAM 18.00 M
DEPTH 10.50 M
DRAFT 7.615 M
GT REGISTERED: 5893 MT;
PANAMA CANAL: 6549.79 MT;
SUEZ: 6235.04 MT;
NT REGISTERED: 3362 MT;
PANAMA CANAL: 4984.31 MT;
SUEZ: 4934.75 MT
DWT 7101 MT
LIGHT WEIGHT 3772 MT
FLOOR SPACE CAPACITY
GEAR DERRICKS: 8×5T, UP: 3×3.5T
ME MITSUI-B&W 5L50MC 5720BHP 125RPM 4670KW×1 SET; TURBO CHARGER VTR 454×1 SET. MAXIMUM OUTPUT: 6350PS×125RPM;
NORMAL OUTPUT: 5720 PS×121 RPM (90%)
AE/GENERATOR AUX. BOILER: TORTOISE ENGINEERING CO., LTD. MKSC20-1000/860G 1 SET;
GENERATOR: BURSIILESS-EXCITED A.C. GENERATOR×3 SETS;
PRIME MOVE: YANMAR M200L-EN 750PS×720RPM×3 SETS, 480 KW×720RPM, 600KVA, AC 450V×3 SETS
PROPELLER FIVE BLADES, SOLID KEYLESS×1 SET
BOW THRUSTER CONTROLLABLE PITCH KT-43B1×1 SET, THRUST ABT. 4.8 TONS
REF. SYSTEM MAEKAWA MFG CO., LTD.
SPEED/CONSUMPTION ABT. 17.6 KTS ON ABT. 17.7 MT OF 380 CST
FUEL TYPE
TANK CAPACITY FUEL OIL: 980.26 CBM;
DIESEL OIL: 79.84 CBM;
FRESH WATER: 182.83 CBM;
BALLAST WATER: 514.60 CBM
DAILY CONSUMPTION
CAPACITY OF F.W. TANK
HOLD NUMBER 4
HATCH NUMBER 4
HATCH SIZE 8.40M×6.40M
COMPARTMENT 12
DECKS 3
DECK AREA 3282?Z?
DECK HEIGHT MIN 2.2M
CAPACITY (CBFT) 300996
CAPACITY (CBM) 8523
TYPE OF THE VENT SYSTEM VERT
AIR CIRCULATIONS
AIR RENEWALS
VENT
TEMPERATURE -25/+13
COOLING SYSTEM/TEMP
COMPRESSOR/REFRIGERANT
COOLING SECTION 8
PALLETS 2520
SIDE PORT DOOR WATER TIGHT, SIZE: 2.00M×2.00M×1/HOLD
CREW 25
INSPECTION PLACE
DELIVERY PLACE
PRICE USD 2.5 MILLION
