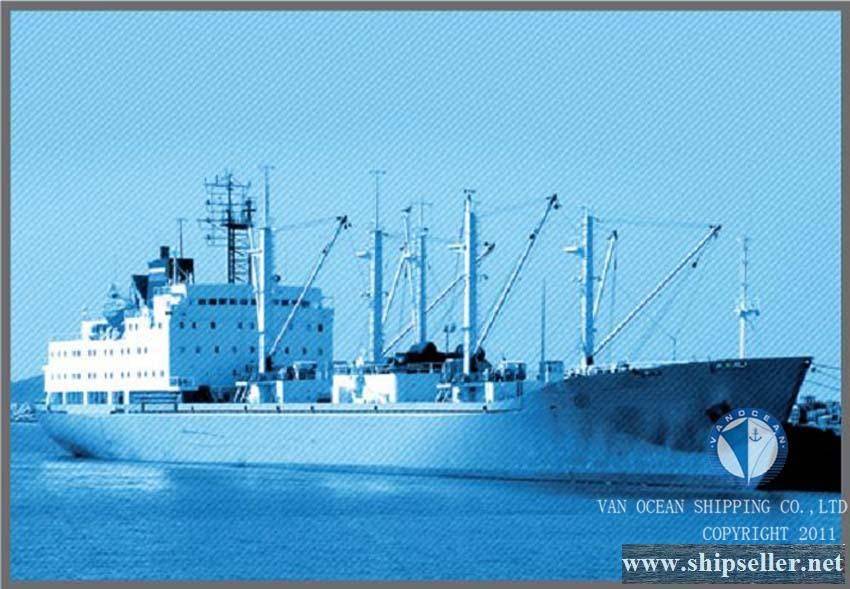

REF518 WISMAR, GERMANY 1989

NO. REF518
TYPE REEFER CARRIER
FLAG RUSSIA
PORT OF REGISTRY KALININGRAD
BUILT built_in 1989
BUILT PLACE WISMAR, GERMANY
CLASS RMRS KM﹡L1 REF;
(MAX DRAFT 8.17 M)
ICE CLASS ICE 1A
P&I INSURANCE NORTH OF ENGLAND
SS
DD
LOA 152.74 M
LBP
BEAM 22.2 M
DEPTH 13.6 M
DRAFT 9.60 M (SUMMER)
GT 12406 MT
NT 5510 MT
DWT 13304 MT
DISPLACEMENT 7397.9 MT
DISPLACEMENT (CARGO) 20702.6 MT
FLOOR SPACE CAPACITY 4075?Z?
GEAR 8 DERRICKS, SWL: 5MT/UP 3MT
ME DIESEL MAN KSZ 70/125 BL, 7600 KW, 10330 HP, MAKER: LIZENZ MAN VEB DISELMOTORWERK ROSTOK DDR
AE/GENERATOR
SPEED/CONSUMPTION FULL SPEED (MAX): 15.50 KNOTS (BALLAST);
DEAD LOW (MIN): 5.0 KNOTS
PROPELLER FIXED-BLADE, RIGHT HANDED
FUEL TYPE
BUNKERS IFO 180: 2297.3 CBM (90%);
MGO: 1753.2 CBM (90%);
FRESH WATER: 320 MT (100%)
HOLD NUMBER 4
HATCH NUMBER 4
HATCH SIZE 6.0×3.85×1.00 M
COMPARTMENT 12
DECKS
DECK AREA
DECK HEIGHT
CAPACITY (CBFT) 470893
CAPACITY (CBM) 13334
TYPE OF THE VENT SYSTEM
VENT
TEMPERATURE -30/+8 DC
COOLING SYSTEM/TEMP
COMPRESSOR/REFRIGERANT
COOLING SECTION 8
GRATING STRENGTH 232 MT/SQM
INSPECTION PLACE
DELIVERY PLACE FAR EAST
PRICE USD 7.0 MILLION
REMARKS VESSEL IS EQUIPPED WITH 20 OCEAN FENDERS FOR HIGH SEA TRANSHIPMENT
