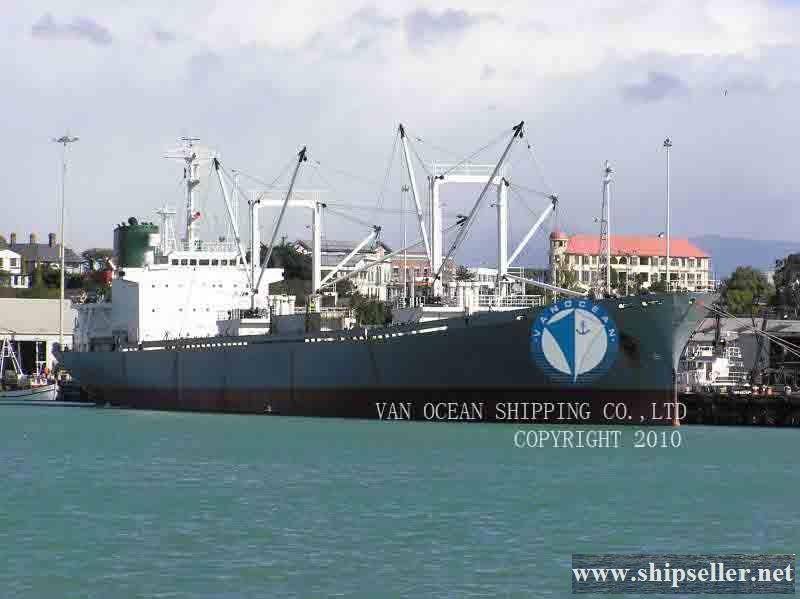

REF422 SHIKOKU DOCKYARD, JAPAN 1983-9

NO. REF422
TYPE REEFER
FLAG BAHAMAS
BUILT built_in 1983-9
BUILT PLACE SHIKOKU DOCKYARD, JAPAN
CLASS NK, NS, MNS, RMC
SS 2013-11
DD 2013-11
LOA 145.57M
LBP
BEAM 17.81M
DEPTH 10.5M
DRAFT 6.751M
GT 6159MT(PANAMA); 6793(CANAL)
NT 2699MT(PANAMA); 5178(CANAL)
SUEZ GRT/NRT 6353.71/5068.47
LDT  3886 MT
DWT 6410MT
FLOOR SPACE CAPACITY
GEAR DERRICKS 8×5MT, SWL 5MT, UP 3.5MT
ME B&W 8L45GB 7890 BHP MCR 175RPM
AE/GENERATOR 3×DAIHATSU 6DL-20 EACH 480 KW, 720RPM
SPEED/CONSUMPTION 16.5KTS ON 23.1MT IFO (380)+2 BLEND BAN BAL 17 ON 19+0.8 FRZ;
16.5 ON 23.5;
PORT IDLE/WORKING: 0.8/2
FUEL TYPE IFO 380
GRATING DECK STRENGTH 1.7T/?Z?
HOLD NUMBER 4
HOLD DECK HEIGHT 2.79/2.94M
HATCH NUMBER 4
HATCH SIZE 7.01×5.31M
COMPARTMENT 12
DECKS 3
DECK AREA 3410SQM
DECK HEIGHT MIN 2.2M
CFT/SQM HOLDS: 312,479 CUB.F/8848 CUB.M. (319,867 CUB.F WITH HATCH COAMINGS)
CAPACITY (CBFT) 312479
CAPACITY (CBM) 8848
BUNKERS  1252.5 CBM IFO + 141.1 CBM MDO
TYPE OF THE VENT SYSTEM AIR COOLING (FREON)
VENT/AIR CIRCULATION 2.5/4.0  45/90
VENT VERT
TEMPERATURE -25/+32DC
CONTAINER CAPACITY 2 FEU
REEFER PLUGS 2
AIR CHANGE 90/HR
COOLING SECTIONS 8 (COMPARTMENTS A & BC)
PALLET  2700
C.A. FITTED N/A
INSPECTION PLACE DAVAO, MASAN, YOKOHAMA, MOJI
DELIVERY PLACE KOREA, CHINA, SINGAPORE RANGE
PRICE USD 1.6 MILLION
REMARKS INSPECTION PLACE MAY BE DAVAO, MASAN, YOKOHAMA, MOJI;
STACK WEIGHT 30T GRATING STR 1.7T/SQM
