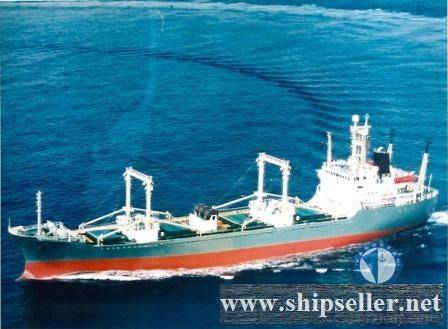

REF413 IMABARI SHIPBUILDING, JAPAN 1986-6

NO. REF413
PORT OF REGISTRY  PANAMA
TYPE REEFER
FLAG PANAMA
BUILT built_in 1986-6
BUILT PLACE IMABARI SHIPBUILDING, JAPAN
CLASS NK
SS 2015-06-06
DD 2013-05-05
LOA 125.20M
LBP 117.46M
BEAM 16.41M
DEPTH 10.20M
DRAFT 7.214M (SUMMER)  7.064M (WINTER)
7.364M (TROPICAL SALT)
7.502 (TROPICAL FRESH)
GT 4790MT (INTERNATIONAL)
5452MT (PANAMA)  5077 (SUEZ)
NT 2442MT (INTERNATIONAL)
4138MT (PANAMA)  3710.98 (SUEZ)
DWT 5589MT
FLOOR SPACE CAPACITY 2503.19SQ.M
GEAR DERRICKS 8 (4 SETS-3 TNS SWL U/P)
ME AKASAKA 5UEC45 LA 5000 BHP (BURNING HVF 3500)
AE/GENERATOR 3×400 KW YANMAR M200L-UT, 600 PS, 720 RPM. 500 KVA (BURNING HVF 3500)
BOW THRUSTER  1×515 KW/700 HP
SPEED/CONSUMPTION SEA CONSUMPTION:
BALLAST/BANANA;ABT 16 KTS AT 15.5 MTS/DAY (IFO 380 CST-RME 380)
DEEP LADEN:ABT 15 KNOTS AT 16 MTS/DAY (IFO 380 CST-RME 380)
PORT CONSUMPTION
REEFER PLANT OFF ABT 2.5 MTS/DAY (IFO 380 CST-RME 380)
REEFER PLANT ON ABT 3.5 MTS/DAY
FUEL TYPE MDO IFO 380
HOLD NUMBER 4
HOLD NO. 1 A B
HOLD NO. 2-4 A B C
HATCH NUMBER 4
HATCH SIZE 5.70×6.40M
COMPARTMENT 11 HEIGHT MIN 2.20M
DECKS 2
DECK AREA
DECK HEIGHT MIN 2.2M
CAPACITY (CBFT) 227539
CAPACITY (CBM) 6444
TYPE OF THE VENT SYSTEM
VENT VERT
GRATINGS WOODEN-MAX LOAD 5 MT (CARGO+FORKLIFT WITH 4 PNEUMATIC TYPES)
COOLING SECTIONS 7 1AB/2BC/2A/3BC/3A/4BD/4A
TEMPERATURE -25/+12DC
AIR CHANGE 90/HR
PALLET 1925
CREW  ABT 15
INSPECTION PLACE
DELIVERY PLACE SEYCHELLES
PRICE USD 1.3 MILLION
