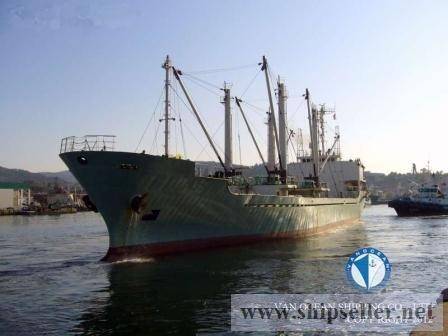

REF353 KOCHI JYUKO CO., JAPAN 1984-1

NO. REF353
TYPE REEFER
FLAG PANAMA
BUILT built_in 1984-1
BUILT PLACE KOCHI JYUKO CO., JAPAN
CLASS NK
SS
DD
LOA 93.88M
LBP
BEAM 16.00M
DEPTH 8.25M
DRAFT SUMMER: 6.12M
GT 2829
NT 1626
PANAMA GT 3410.94
SUEZ GT 3054.84
DWT 3983MT
FLOOR SPACE CAPACITY
GEAR DERRICK: 6 X 3MT OR 3 X 3MT UP
ME 1SET, KOBE - MITSUBISHI 6UEC37H
- II 3315BHP 210RPM
AE/GENERATOR 2SETS, YANMAR T220L – UT 750BHP
720RPM
SPEED/CONSUMPTION MAIN: ABT 13 KNOTS ON 9.5 MT (IFO180 RME25) AT BANANA LADEN
AUX: 0.5MT(IFO180 RME25) AND 0.7 – 1.6 MT (MDO DMB)
FUEL TYPE IFO180 RME25
TANK PAPACITY IFO180 RME25: 650MT
MDO DMB: 140 MT
HOLD NUMBER 3
HATCH NUMBER 3
HATCH SIZE 6.00 X 7.15M
COMPARTMENT 6
DECKS 2
DECK AREA 1253.02SQM
DECK HEIGHT MIN: 2.20M
PALLET 950
CAPACITY (CBFT) 139960
CAPACITY (CBM) 3963
TYPE OF THE VENT SYSTEM
VENT VERT
AIR CHANGE 90 HOURS
TEMPERATURE -55/ +12 DC
DIFF TEMP 6/2 PER HOLD
INDEPENDENT COOLING SECTION 1 A/B, 2 A/B, 3A/B
PORT OF REGISTRY PANAMA
DECK STRENGTH ALLOWABLE WEIGHT OF FORKLIFT INCLUDING CARGO MAX 5MT (FORKLIFT TO BE EQUIPED WITH MIN 4 AIRTYRES)
REEFER PLANT 3SETS, SCREW COMPRESSOR
MYCOM F125LUD2 – M 82.9RT 90KW
INSPECTION PLACE
DELIVERY PLACE BANGKOK
PRICE USD 1.98 MILLION
REMARKS ETA BANGKOK IS AUGUST 16, PROMPT DELIVERY CAN BE MADE IN BANGKOK WHEN VESSEL ARRIVES THERE.
