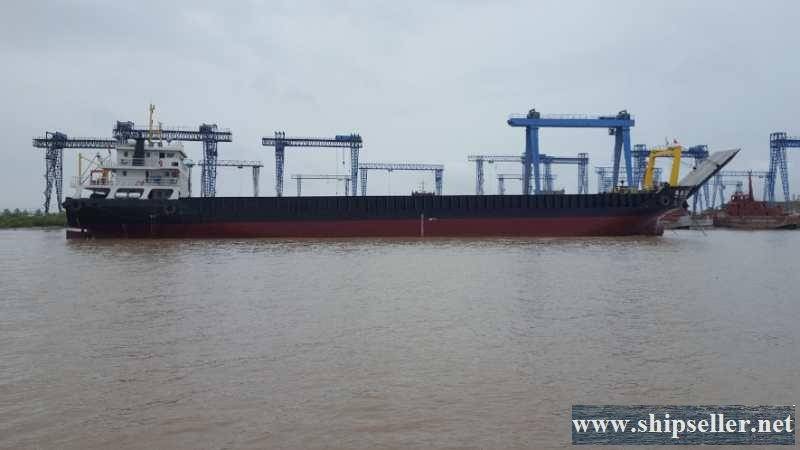

N/B 3530 DWT LCT type Self propelled deck barge


2018 built at jiangsu province,

Class ZC A1+A2

Double Bottom

Loa (including Ramp) 89.64m

LBD  87.75x18.38 x4.80 m

DWT 3530Ton at Draft 3.63m

GRT/NRT 2120 x 1187

Speed 8 knots

ME WEICHAI CW6200ZC-16 , 350KW x 2 Sets

actually is 950HP *2 Set

HANGZHOU Gearbox HCD1000 6.06:1

Aux Engine  ShanghaiDiesel Engine 6135ACaf 108KW x 2 sets

Generators SB-HW4-90, 90KW x 2 sets

Ramp 15.00m (L) x 6.20m(W)

Deck Loading abt 8T/M2

Main deck Plate: 18mm

Sidewall 2M height


Crew 11P
