N/B 3000 DWT LCT type Self propelled deck barge

N/B 3000 DWT LCT type Self propelled deck barge
1.00
Hakkında
N/B 3000 DWT LCT type Self propelled deck barge
Reference Number
RF197437
Yıl
2018
DWT
3,000
Flag
Chinese
Model
LANDING CRAFT
Ek Bilgiler
İlan Detayları

N/B 3000 DWT LCT type Self propelled deck barge




New building at Jiangsu province,


Class ZC A1+A2


Double Bottom


Loa (including Ramp) 87.82m


LBD  86.28x18.20 x4.80 m


DWT 3071Ton at Draft 3.60m


GRT/NRT 2087 x 1168


Speed 8 knots


Crew 10 P


ME WEICHAI CW6200ZC-16 , 950HP *2 Set


Hangzhou Gearbox HCD800


Aux Engine Shangchai 6135ACaf 180KW x 2 sets


Generators 100KW x 2 sets


Ramp 15.00m (L) x 6.20m(W)


Deck Loading abt 10T/M2


Main deck Plate: 18mm

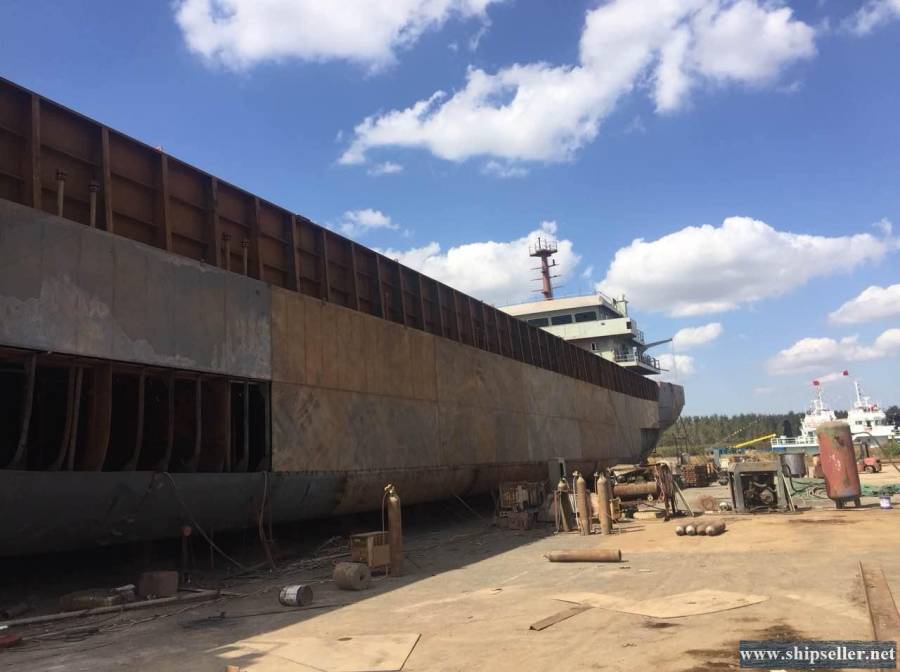

Vessel has completed Hull construction


Will be ready for delivery in the end of 2018.


++++


(w.o.g )
