6000T 7000T 8000T 9000T 10000T 12000T 15000T FLOATING CRANE BARGE 6000
Reference Number
RF122804
Ek Bilgiler
İlan Detayları
WE SELL&RENT/NEW BUILD FLOATING CRANE FROM 50T TO 18000TON.

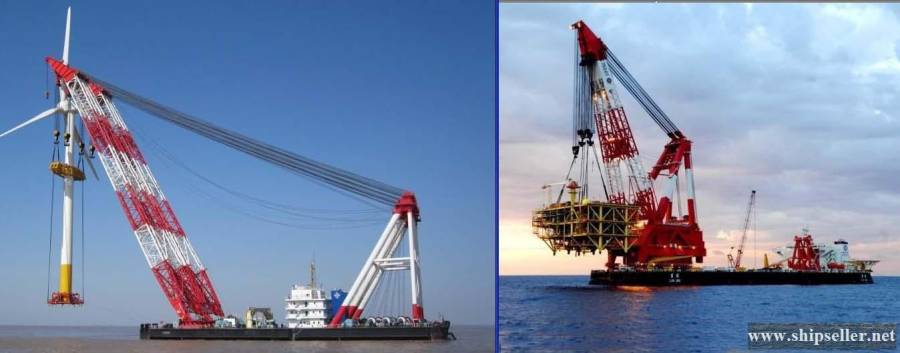

12000TON FLOATING CRANE WITH DP2 FOR RENT
max fixed lifting capacity is 12000tons,
max 360° full revolving lifting capacity: 7000tons,
Fully Made in China
It  is  self-propelled, anchoring positioning / DP, and be used to load and discharge the large body, module, jacket, pipe frame etc. It is suitable for lifting operation in deep waters.
PRINCIPAL PARTICULARS
       10 sets Working Anchor 12000kg MK5type                                    2 sets Sail Anchor 18800kg AC-14type
Class Notation             ABS,
Length Overall                    297.55m                                    Main crane          12000MT@54m(stern)
Breadth Moulded                58.00m                                                                7000MT@44m(360° full revolving)
Depth Moulded                   28.80m                                      Auxiliary hook     1600MT@120m(stern)
Navigation Draft                  13.50m                                                                1600MT@95m(revolving)
Operation Draft                   17.60m                                      MACHINERY
Service Speed                    12kn                                          Main Engine: 21120KWx1 set
Accommodation           380P (crew 72P, worker 308P)           Type: B&W 7S80MC
DECK MACHINERY                                                              Main Diesel Generator Set: 7000 kWx7 sets
2 sets of hydraulic single end combined windlass                   Type:MAN B&W 14 V32/40
7 sets original 200KN double drum mooring winches               Navigation Generator Set: 1040kWx2sets
2sets new 200KN electric hydraulic mooring winches              Harbor Generator Set: 1050kWx1 set
10 sets new 1400kN of working anchor winches                      Emergency Generator Set: 500kWx 1 set
