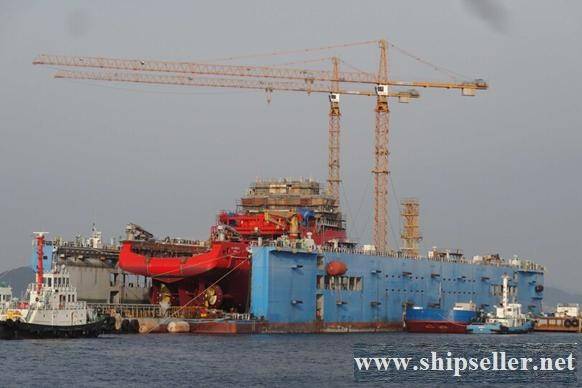

2006Blt, Class KR, 15000T LFC Floating Dock for Sale

1.00

Hakkında

Reference Number

RF158151

Yıl

2006

Web sitesi

Telefon

+86-15900878727

Show number

Ek Bilgiler

İlan Detayları

Built of built_in: 2006 (Extend to 230m in 2011)

Class: KR

LOA (Pontoon Deck): 230.0m

Breadth (Outside/Inside): 45.0/39.0m

Depth (Top/Safety/Tween Deck): 19.0/15.5/12.0m

Depth (Pontoon Deck at C.L): 6.5m

Draft (Max/Working/Light Draft): 15.3/6.0/1.75m

GRT: 20900T

Lifting/Load-out Capacity: 15000/12000 (=2 x 6000T)

Water Ballast: 57100m³, FO Storage Tank: 50m³

Ballast Pump Capacity: 2000m³/h x 15m x 110KW

Windlass Capacity: 20/40T x 24/12m/min, Elecro-hydraulic motor driven

Mooring Winch: 15/30T x 16/8m/min, Elecro-hydraulic motor driven

Anchor/Anchor Chain: 1 x 13.6T (Danforth Type) / 1Lot x 66Dia x 412.5m (Grade 3)

Multi-roller Top Deck: SWL 7 x 60T

Stand Roller Top Deck: SWL 4 X 60T

Anchor Stopper Top Deck: 1 x 14T

(All mooring fittings capacity of more than SWL 60T)

Gantry Crane (On Top Deck): 1 x 30T, 440V/60Hz

Towing Equipment is equipped at the suitable place of working deck ship bow and stern.

Inspection/Delivery: Korea

Full Detail Available Againest Serious Buyers.
