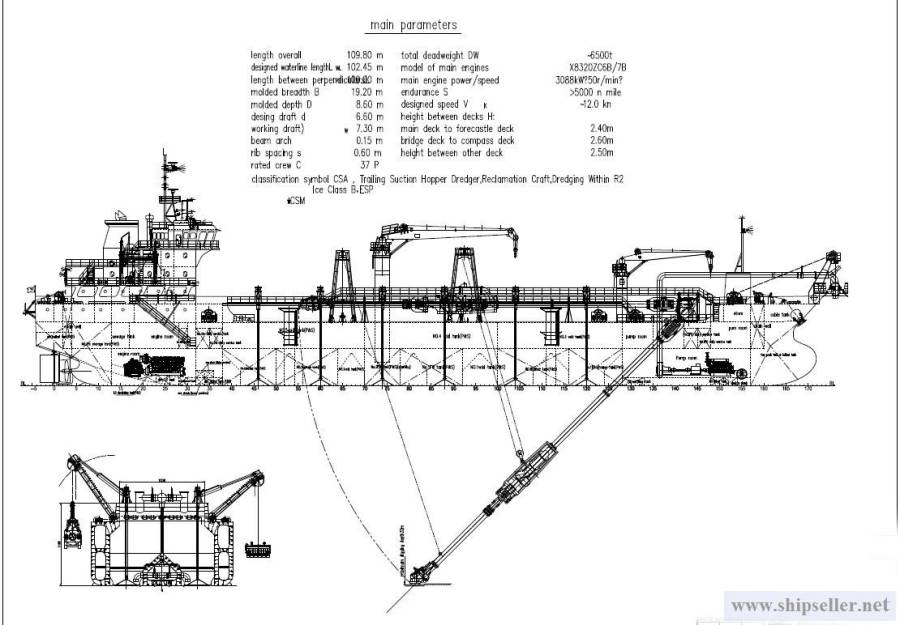

6,000CBM TRAILING SUCTION HOPPER DREDGER
BUILT IN CHINA(Under the construction)
CCS CLASS
L.O.A/L.B.P/BEAM/DEPTH 106.60/100.0/19.20/8.60M
DESIGN DRAFT 6.60M
OPERATING DRAFT 7.30M
GRT 5689T
HOPPER CAPACITY 6,000M3
COMPLEMENT 37P
MAIN PROPULSION ENGINE G8320ZC2B/7B 3089KW/650RPM *2SET
ENGINE FOR INBOARD PUMP CW12V20ZD-1, 1440KW/1000RPM *2SET
ENGINE FOR HIGH PRESSURE JET PUMP
CW12V20ZD-1, 1440KW/1000RPM *2SET
MAIN GENERATOR SET
CCFJ400J-WD,8170ZC, 441KW/ 1000RPM *3SET, 50HZ/400V
DIESEL ENGINE FOR ENMERGENCY GENERATOR SET
                             CCFJ120Y 240KW/50HZ, 400V
NAVIGATION SPEED 12KN
DURING DREDGING SPEED 7KN
