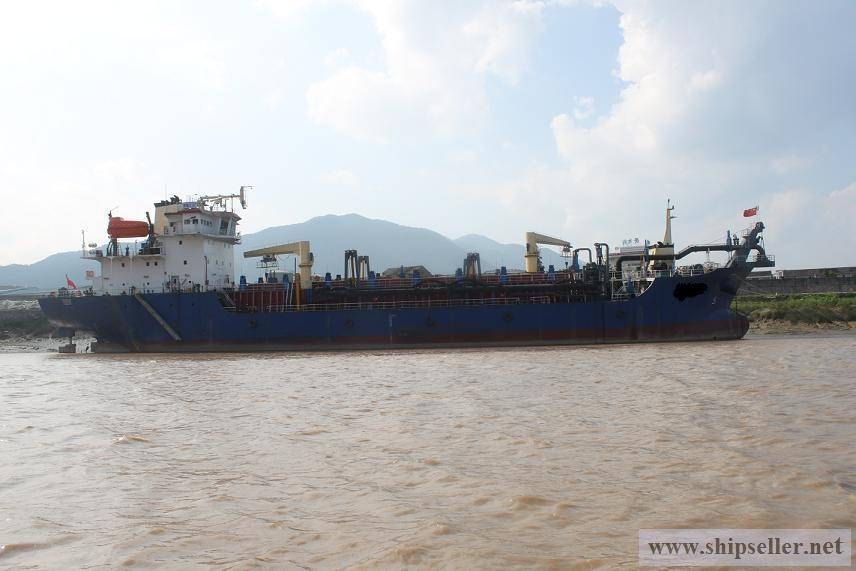

5500 cubic meters dredger

5500 cubic meters dredger
17,800,000.00
Reference Number
RF177456
Hakkında
5500 cubic meters dredger
DWT
7,741
Flag
CONVINENCE
Ek Bilgiler
İlan Detayları

Main dimension


Length of overall 105.00m        Length between perpendiculars 95.20m


Breadth,moulded 19.00m         Depth,moulded 8.00m


Design draft 4.80m              Operating draft(under dredging `condition`) 7.24m


Deadweight at operating draft(dredging `condition`) 7741.4t


Max dredging depth(below light draft) 27m


Power of main engine 2×2795KW


Navigation speed 11Kn


Dredge pump particulars as follows：


Type: centrifugal type with single wall case


Clear water capacity: 10000m3/h


Head: 21.5 m


Shaft power: 735kw


Clear water capacity 3543m3/h


Total head 77.2m


Shaft power 857KW


Loading time


The loading time is about 45min


Dumping time


not more than 5min


Hopper capacity


Max hopper capacity is 5500m3
