2500CBM/H Cutter Suction Dredger for sale
Reference Number
RF235361
Yıl
2009
Flag
China
Ek Bilgiler
İlan Detayları

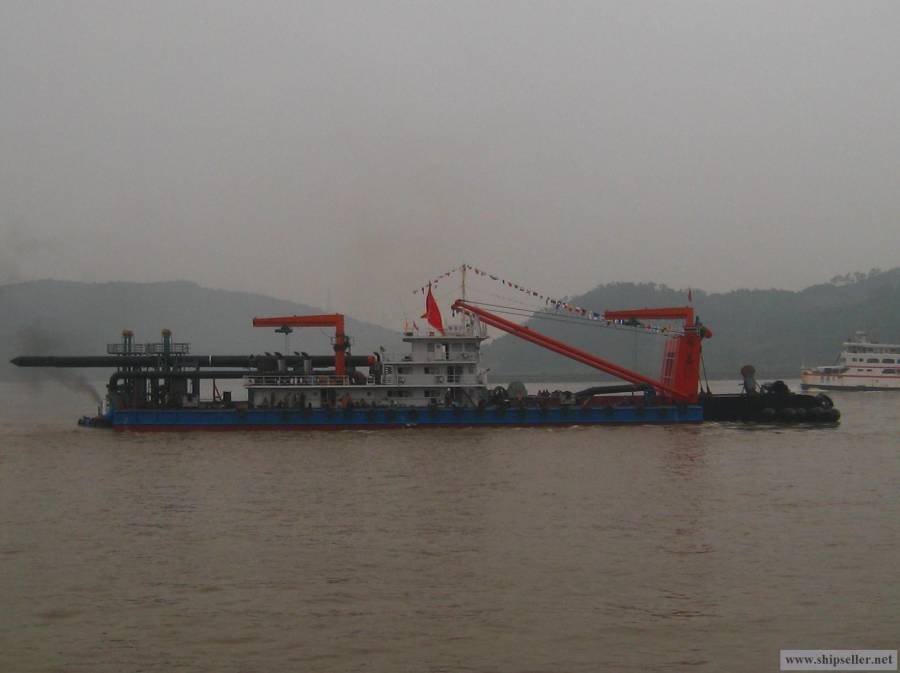

CUTTER SUCITON DREDGER



BUILT IN 09/2009
CLASS ZC
FLAG CHINESE
GRT/NRT 1140/342
LOA/LBP/B/D 79.36/60.50/16.00/4.00 ALL IN METERS
DRAFT 2.45 METERS
ACCOMMANDATION 24 P
DREDGING PART
DREDGING CAPACITY 2500CBM/HOUR
MAX DREDGING DEPTH 25 METERS
SUCTION PIPE DIAMETER 800 MM
DISCHARGE PIPE DIAMETER 750 MM
 INBOARD DREDGING PUMP
      2618KW @ 410RPM
      DISPLACEMENT AND HEAD 10000CBM/HOUR, N * 75 METERS
      DIESEL ENGINE 12V280ZC 3150KW/1000RPM
UNDERWATER DREDGING PUMP
      1280KW @ 400RPM
      DISPLACEMENT AND HEAD 10000CBM/HOUR, N * 35 METERS
      DIESEL EIGINE 12V240ZC/D 1850KW/1000RPM
CUTTER
      DIAMETER 2560 MM, 4.15L/T HYDRAULIC
      INPUT 1050KW
      OUTPUT 840KW
      MAX. 36RPM
 SPUD LENGTH/DIAMETER 2 UNITS x 35 METERS/1200 MM
DISCHARGING DISTANCE 6000 METERS
