1.00
Reference Number
RF194750
Hakkında
154. Self-propelled hopper dredger
Yıl
2010
DWT
3,850
Flag
Cyprus
Model
Dredger
Ek Bilgiler
İlan Detayları

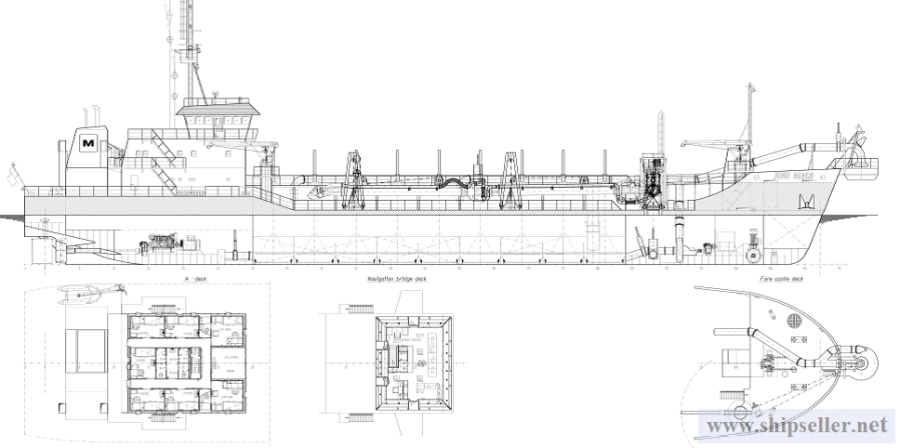

Trailing suction hopper dredger



built_in and construction place – 2010, Netherlands



Flag - Cyprus



GRT - 2590



NRT - 775



Length - 83 m.



Width – 16 m.



Board height – 5,6 m.



Draft – 5,0 m.



DWT – 3850 t.



Bunker volume – 2400??3



Suction pipe diameter - 700 mm.



Maximum dredging depth - 25 m



Discharge system - 9 bottom doors



Laden speed – 11,5 kn.



Maximum waves during loaded – 2,5 m.



Total installed power - 2980 kW.



Jet pump power – 360 kW.



Sand pump output – 1000 kW.



ME – Caterpillar 3512B-HD



ME power – 2 x 1350 kW (single screw)



DG power – 1 x 200 kW



Bow thruster – 1 x 325 kW



Accommodation – 14 people.



Fuel consumption:



ULSD - 10 tons/days during dredging



ULSD - 0.4 tons/days during stay



Oil consumption– 35 kg/days during dredging



Location –
Baltic



Cost – on
demand
