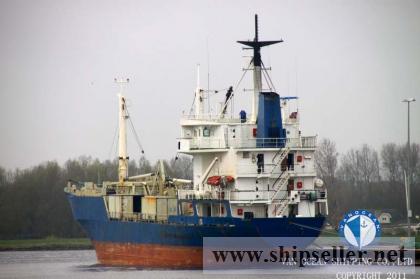

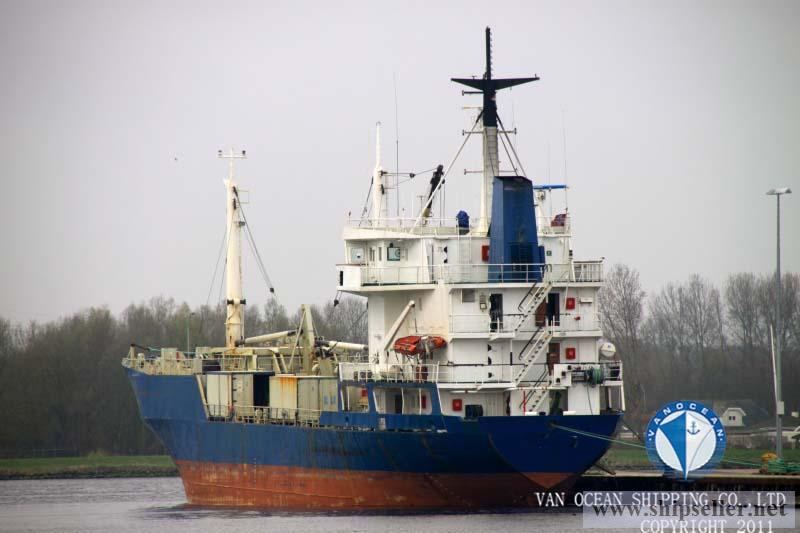

REF118 FREDERIKSHAVN VAERFT, DENMARK 1980-12

NO. REF118
TYPE REEFER
FLAG THAILAND
BUILT YEAR 1980-12
BUILT PLACE FREDERIKSHAVN VAERFT, DENMARK
CONVERSIONS NOV 2011: DRY DOCKING MADE (CLEANING, SANDBLAST AND PAINTING OF HULL).
FREEZING PLANT, WHEELHOUSE AND ELECTRONICS ALSO COMPLETELY OVERHAULED.
DECK CRANES OVERHAULED
CLASS FLAG MARITIME AUTHORITY
SS PASSED ON 04-2010
DD 2013-04
LOA 75.39 M
LBP 67.09 M
BEAM 13.21 M
DEPTH 7.27 M
DRAFT 5.01 M
GT 1884 MT
NT 953 MT
DWT 2144 MT
FLOOR SPACE CAPACITY
GEAR DERRICKS 3×5MT
ME ALPHA 12V23L-VO 2370 BHP AT 800 RPM;
MAIN ENGINE DETAILS: RENEWED BY NEW ONE (0 KMS) IN AUGUST 2012;
1 OIL ENGINE SINGLE REDUCTION GEARED TO SCREW SHAFT;
4 STROKE, SINGLE ACTING;
AE/GENERATOR 3 GENERATORS OF 280 KW 440 V 60 HZ A.C.;
1 GENERATOR OF 44 KW 440 V 60 HZ A.C.
PROPELLER CONTROLLABLE PITCH PROPELLER
NAVAIDS AND ELECTRONICS FULL MODERN NAVAIDS AND COMMUNICATION SYSTEM
SPEED/CONSUMPTION 11.5 KTS
FUEL TYPE
HOLD NUMBER 3
HATCH NUMBER 3
TYPE: VELLE
HATCH SIZE WEATHER DECK:
NO.1: 8.90×4.80M
NO.2、NO.3: 6.85×4.82M
TWEENDECK:
NO.1、NO.2、NO.3: 7.30×5.00M
COMPARTMENT 7
DECKS 2
DECK AREA
DECK HEIGHT
CAPACITY (CBFT) 104564
CAPACITY (CBM) 2961
TYPE OF THE VENT SYSTEM
VENT VERT
TEMPERATURE -25/+12 DC
REEFER AREA 1174 SQM
TEU 12
COOLING SECTIONS 3
AIR CHANGE 80/HR
INSPECTION PLACE FAR EAST
DELIVERY PLACE
PRICE USD 1.6 MILLION
