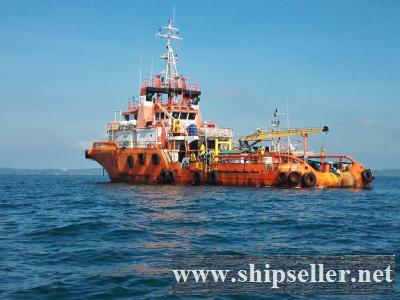

42m Anchor Handling and Towing / Offshore Support Vessel for sale!!

Posted Aug 12, 2021 | Hits: 878 | Stock No: #8309
City:   Labuan
Year:   1998
Condition:   Very Good
Flag:   Palau


Free


-
Date Launched:  1998
Length:  42.50m (139ft 5in)
Beam:  11.60m (38ft)
Draft:  4.25m (13ft 11in)
Location:  Labuan, Malaysia
Flag:   Palau
Total Persons on Board: 25
LAID UP SINCE FEB, 2019
Price:  Contact us for more information on
mohamedet24@gmail.com
hany@maxmarine.com.eg
Or WhatsApp +44 7503 367558
To be sold on where is as is basis

Principal Particulars
LOA: 42.50m
Breadth Moulded: 11.60m
Depth Moulded: 5m
Summer Draft: 4.25m
Gross Tonnage: 663
Net Tonnage: 199
Deadweight (Summer Draft): 465 tons (approx.)
Free Deck Space: 128 (approx.)
Deck Strength: 5 tons /

Fire Fighting & Anti-Pollution Equipment
FiFi Classification: FFV1
Fire Pumps Capacity: 1 x 1500
Fire Monitor Capacity: 2 x water & foam monitor, 600  / hr. @12 bar
Oil Dispersant System: 2 x 6m spary boom

Remarks: 1 x fixed firefighting system (CO2) to machinery space of Cat A fire detection & alarm, system & firefighting equipment are in accordance with SOLAS / LSA code & flag state requirements.

Discharge Pump Capacities
Fuel Oil (Cargo): 1 x 50  / hr. @60m head
Fresh Water (Cargo): 1 x 50  hr. @60m head

Fresh Water / Water Tanks ()
No. 1 FW / WB (C): 16.8
No. 2 FW / WB (P): 17.9
No. 2 FW / WB (S): 17.9
TOTAL: 52.6

Fresh Water Tanks ()
No. 1 FW (P): 14.7
No. 1 FW (S): 14.7
No. 2 FW (P): 34.3
No. 2 FW (S): 34.3
No. 3 FW (P): 41
No. 3 FW (S): 41
TOTAL: 180

Accommodation
1 Man Cabin x 3: 3
2 Men Cabin x 7: 14
4 Men Cabin x 2: 8
Total Persons on Board: 25
(Fully Air-conditioned)

Anchor Mooring System
 Anchor Type: Stockless bower anchor
Anchor Capacity: 2 x 900 kg
Anchor Chains: 2 x 11 shackles L, 30mm dia. Rope

Deck Equipment:
Anchor Windlass and Mooring Winch: Electro hydraulic system, windlass with 6 tons duty pull @ 14 m/min, mooring drum with 10 tons pull @14 m / min, 100m L 96mm dia. Rope
Anchor Handling and Towing Winch: Double drum, waterfall type @electro hydraulic system, drum capacity for wire of 1000m L x 54 mm dia., 170 tons brake holding 100 tons pull force @6 m/min
Deck Crane: SWL 3 tons @9m outreach
Towing: 2 units for 200 tons bollard pull
Shark Jaw: 2 units for 300 tons MBL wire
Tugger Winch: 1 x 5 tons @ electro hyd.sys
Capstan: 2 x 5 tons @ electro hyd.sys

Safety Equipment
Life Rafts: 2 x 25 men + 2 x 12 men
Rescue Boat: 1 x 6 men c/w pivoting davit
Scrambling Net: 2 sets

Remarks: Vessel’s lifesaving equipment is in accordance with SOLAS / LSA code & flag state requirements

Other Equipment Capacities
Bilge / Ballast / Fire Pump: 1 x 50 m/h
Bilge / GS / Fire Pump: 1 x 50 m/h
E Fire Pump: 1 x 30 m/h
Oily Water Separator: 1 x 1 m/h
Sewage Treatment: 1 unit, suitable for 25 men

Fuel Oil Tank Capacities ()
No. 1 FO (P): 25.7
No. 1 FO (S): 25.7
No. 2 FO (C): 22.1
No. 2 FO (P): 11.7
No. 2 FO (S): 11.7
No. 3 FO (P): 27
No. 3 FO (S): 27
No. 4 FO (P): 79.5
No. 4 FO (S): 79.5
FO DAY (P): 4.8
FO DAY (S): 4.8
TOTAL: 319.5

Propulsion System
Main Engine: 2 x 2000 BHP, diesel engine @ 720 rpm c/w reduction gearbox
Propeller: 2 x FPP, 2.5m dia. @ 4-bladed
Steering Gear: 2 x independent electro.hyd.sys
Bow Thruster: 1 x 5 tons, CPP (engine driven)

Propulsion Performance
Maximum Speed: 10 knots (approx.) @ 100% MCR
Bollard Pull: 50 tons (approx.) @ 100% MCR

Electric Power Generation
Main Generators: 2 x 225 kW
Emergency Generators: 1 x 50 kW

Navigation & Communication Equipment
GPS Navigator: 1 unit
Gyro Compass: 1 unit
Magnetic Compass: 1 unit
Radar: 2 units
AIS: 1 unit
Echo Sounder: 1 unit
Speed Log: 1 unit
Anemometer: 2 units
BNWAS: 1 set
Auto Pilot: 1 unit
Joy Stick Control: 1 set
CCTV: 1 set
Search Light: 2 units
GMDSS Radio A3: 1 complete set
VHF Radio Telephone: 2 units
MF/HF SSB Radio Telephone: 1 unit
Portable VHF: 3 units
Inmarsat C: 1 set
EPIRB: 1 unit
SART: 2 units
Navtex Receiver: 1 unit
Fleet Broadband: 1 set
Interior Com System: 1 set
PA System: 1 set
Sound Power Phone: 1 set

Miscellaneous Tanks ()
No. 1 FO (P): 602
No. 1 FO (S): 6.2
No. 2 FO (C): 10
No. 2 FO (P): 1.6
No. 2 FO (S):  1.6
No. 3 FO (P): 1.6
No. 3 FO (S): 1.6
No. 4 FO (P): 10
No. 4 FO (S): 5.4
FO DAY (P): 10.9
FO DAY (S): 10.9
TOTAL: 66
